Features
- Conductor: 23 AWG, Solid-Bare Copper
- Outer Jacket: PVC (Complies RoHS)
- Standard: ISO/IEC11801, TIA-568-C.2
- ISO9001 Certified Manufacturing Plant
Specification
Standard
| Standard |
ISO/IEC11801, TIA-568-C.2 ISO9001 Certified Manufacturing Plant |
General

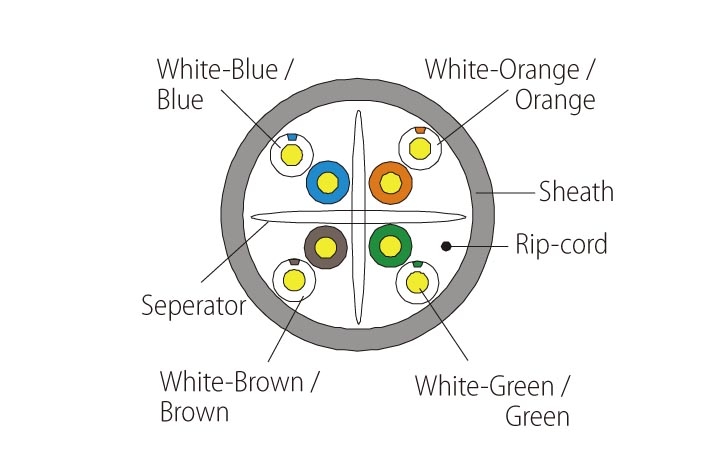

| Construction | U/UTP | |
| Conductor | Material | Solid-Bare Copper |
| Nom.O.D. | 0.550 ± 0.005 mm | |
| Insulation | Material & Diameter | HDPE (0.98 ± 0.05 mm) |
| Sheath | Thickness | 0.55 ± 0.05 mm |
| External O.D. | 6.1 ± 0.4 mm | |
| Material | PVC (Complies RoHS) | |
| Rip-cord | Yes | |
| Sheath Physical Properties (Before Aging) | Tensile Strength | ≥ 13.5 Mpa |
| Elongation | ≥ 150 % | |
| Aging Period | 100 °C x 24h x 7d | |
| Sheath Physical Properties (After Aging) | Tensile Strength | ≥ 12.5 Mpa |
| Elongation | ≥ 125 % | |
| Cold Bend | - 20 ± 2 °C x 4h, 8 x Cable O.D., No visible cracks | |
| Electrical Characteristics (20°C) | Impedance |
1.0-250.0MHz: 100 Ω ± 15 Ω |
| Delay Skew | 1.0-250.0MHz: ≤ 45 ns / 100m | |
| DC Resistance | Max. 9.38 Ω / 100m | |
| DC Conductor Resistance Unbalance | Max. 5.0 % |
Electric Performance
| Frequency (MHz) | Return Loss (≥dB) | Attenuation 20°C (≤dB) | NEXT (≥dB) | PHASE DELAY (≤ns) | PSNEXT (≥dB) | ELFEXT (≥dB) | PSELFEXT (≥dB) | |
| 1 | 20 | 2.03 | 74.3 | 570 | 72.3 | 67.8 | 64.8 | |
| 4 | 23 | 3.78 | 65.3 | 552 | 63.3 | 55.8 | 52.8 | |
| 8 | 24.5 | 5.32 | 60.8 | 546.73 | 58.8 | 49.7 | 46.7 | |
| 10 | 25 | 5.95 | 59.3 | 545.38 | 57.3 | 47.8 | 44.8 | |
| 16 | 25 | 7.55 | 56.2 | 543 | 54.2 | 43.7 | 40.7 | |
| 20 | 25 | 8.47 | 54.8 | 542.05 | 52.8 | 41.8 | 38.8 | |
| 25 | 24.3 | 9.51 | 53.3 | 541.2 | 51.3 | 39.8 | 36.8 | |
| 31.25 | 23.6 | 10.67 | 51.9 | 540.44 | 49.9 | 37.9 | 34.9 | |
| 62.5 | 21.5 | 15.38 | 47.7 | 538.55 | 45.4 | 31.9 | 28.9 | |
| 100 | 20.1 | 19.8 | 44.3 | 537.6 | 42.3 | 27.8 | 24.8 | |
| 200 | 18 | 28.98 | 39.8 | 536.54 | 37.8 | 21.8 | 18.8 | |
| 250 | 17.3 | 32.85 | 38.3 | 536.27 | 36.6 | 19.8 | 16.8 |
