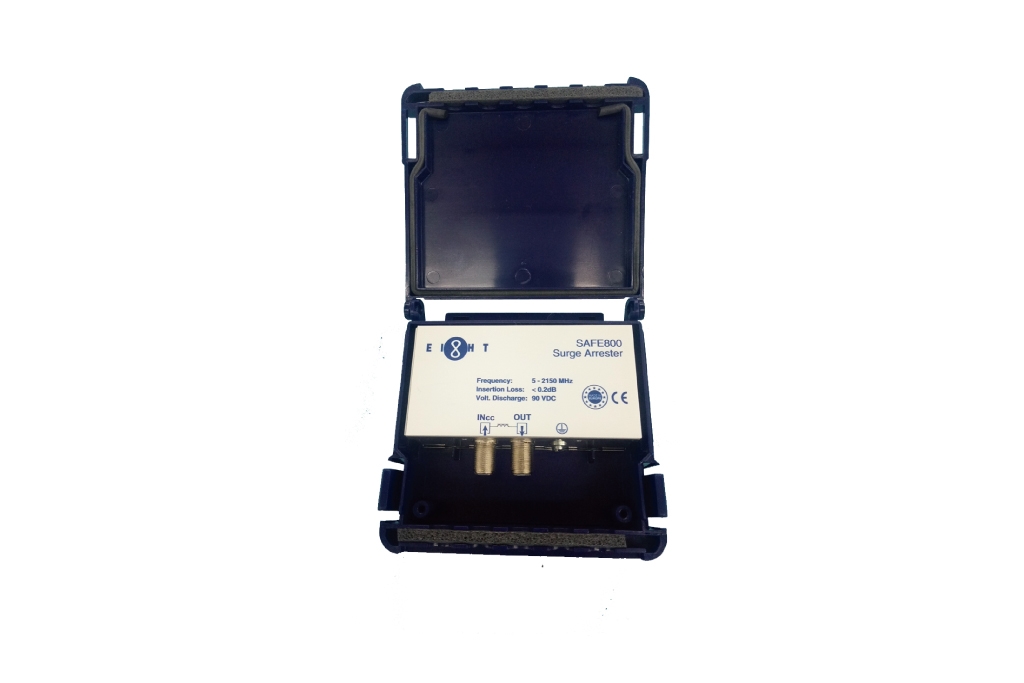

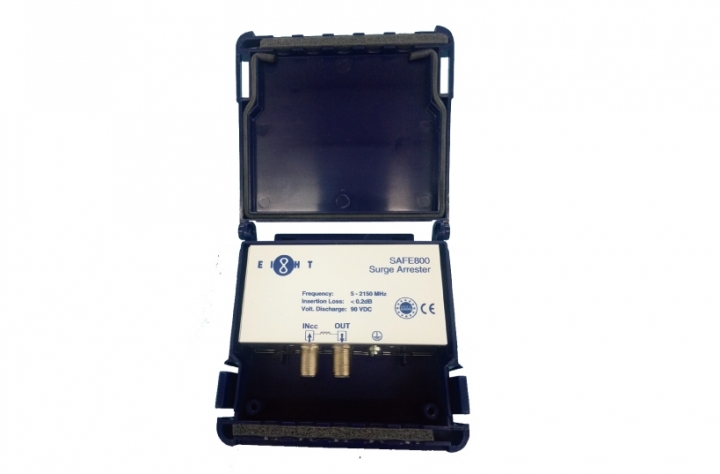

SAFE800
Surge Arrester
Price: HK$0
download-icon Download Specification
Features
  • Frequemcy : 0 - 2300 MHz
  • F" Connectors, 75 Ohm
  • Easy Installation
  • Made in Europe
Specification

General

Frequency band  0-2300 MHz
Insertion Loss 0.2 dB
Return Loss 12 dB
Impedance 75 Ω
Connectors F female
DC spark over voltage @ 100V/s  90 V
Impulse spare-over voltage @1 KV/µs 550V
Impulse discharge current 10 times  5 KA
Insulation Resistance at 50 Vdc  >10 GOhm
DC pass  500 mA
Dimensions (WxLxH) 105 x 11 x 55 mm
