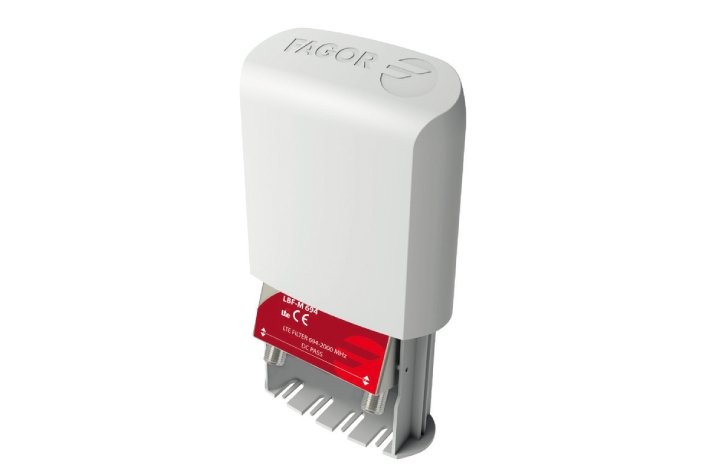

LBF-M 694
Outdoor 5G Filter
Price: HK$0
download-icon Download Specification
Features
  • LTE protection filter for 5G, 4G (694 MHz) and GSM + TETRA (870MHz-960 MHz) signals received by the antenna
  • Shielded metal box with F connectors that assures a high degree of shielding
  • Metallic box housed in a plastic one, ready to be installed
  • Allows DC pass between any output
  • High rejection against interfering signals

Specification


General

Band Pass   5~694
Attenuation in band dB <1
Rejection: 703 (uplink) dB >10
Rejection: 734 (downlink) dB > 60
4G/GSM/TETRA rejection  dB >60
DC pass mA 24V/300
Dimensions  mm 89x97x45
Operating temperature range  ˚C -20~50
Weight  Kg 0.16

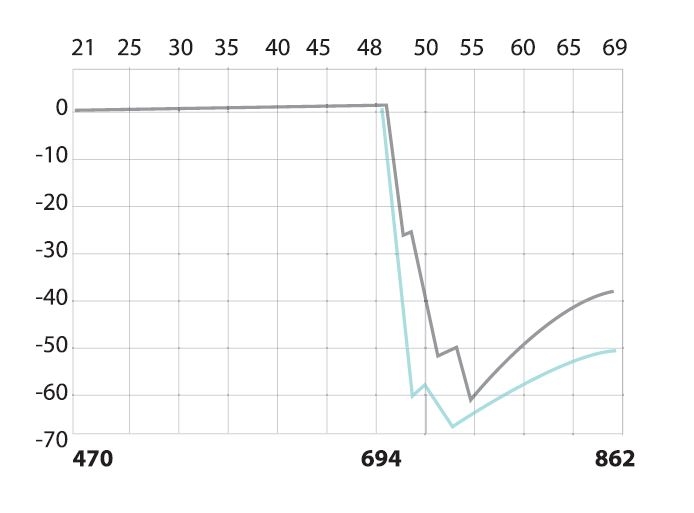

Frequency Response



Self Photos / Files - Frequency Response
