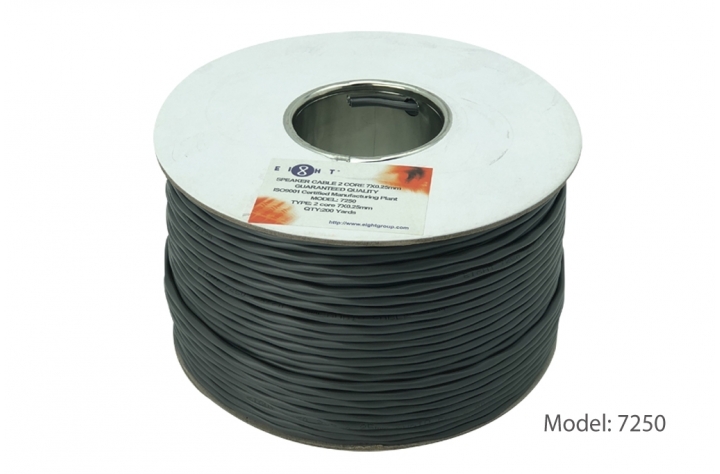

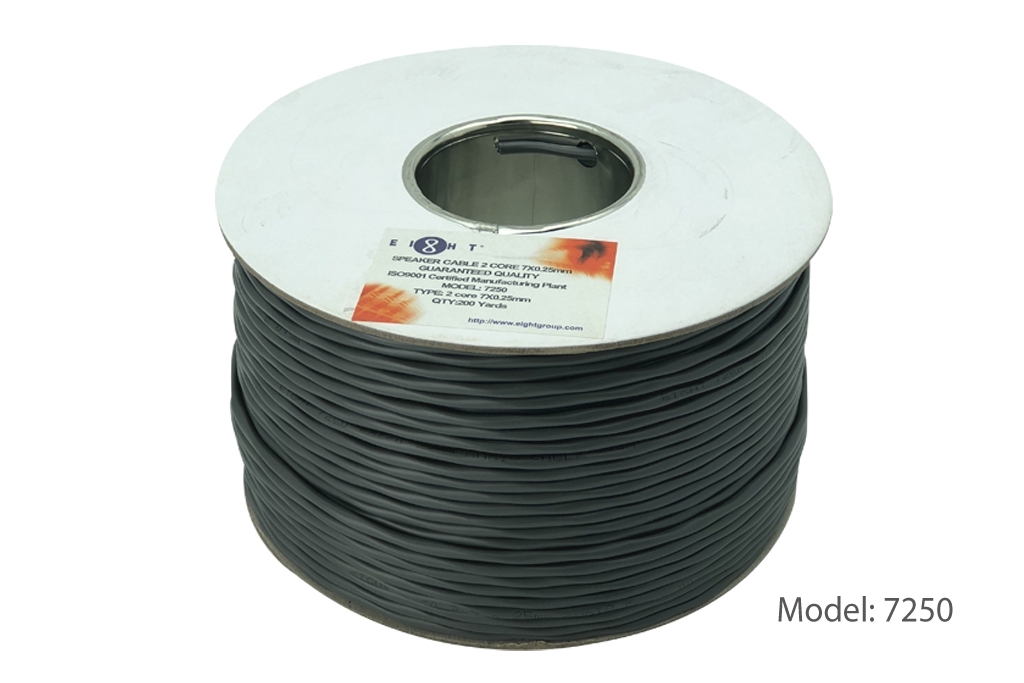

7250
Speaker Cable
Length:
Price: HK$0
download-icon Download Specification
Features
  • Intercom / PA systems
  • Sound / Audio systems
  • LSZH Jacket option available
Specification


General

Conductor Material TC
  Diameter (mm) 7/0.25mm
  Max Resistance(20°C) 51Ω/km
  Construction (mm) ---
Insulation Insulation  PE
  Insulation Thickness 0.42mm
  Insulation Diameter )mm) 1.6±0.02
  Insulation Color White, Black
Jacket Jacket Material PVC
  Jacket Color Black
  Jacket Thickness (mm)  0.55 ± 0.02
  Jacket O.D (mm) 4.1 ± 0.05
Drain Wire 7/0.25mmTC
Shield   AL Foil
Operation Temperature -15°C to +65°C


Construction

Self Photos / Files - 7250Construction





Download Documents
