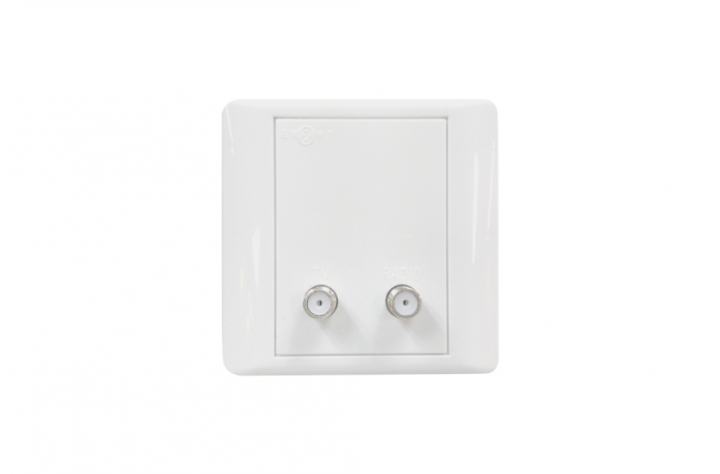

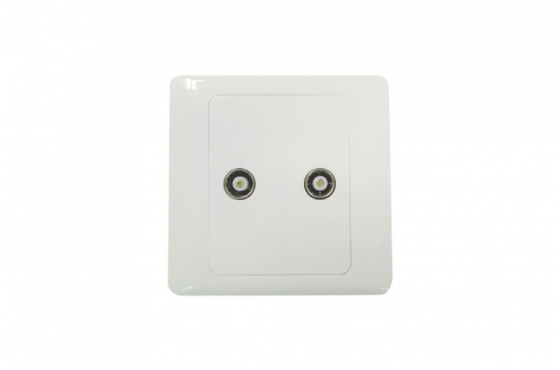

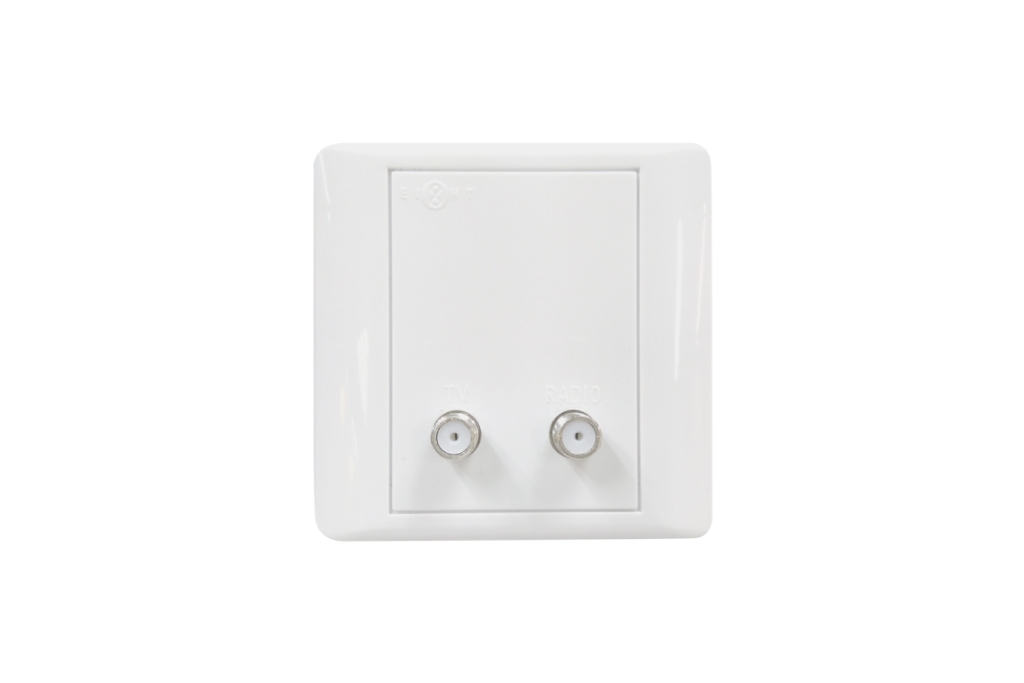

TV25F
TV/FM Wallplates
Price: HK$0
download-icon Download Specification
Features
  • Zinc diecast housing
  • Screening factor ≧ 90dB
  • High RFI
Specification


General

Insertion Loss IN-TV 5 - 550 MHz ≦ 4.2 dB Max
  550 - 860 MHz ≦ 4.8 dB Max
  860 - 1000 MHz ≦ 5.5 dB Max
Insertion Loss IN-FM 88 - 108 MHz ≦ 16 dB Max
Insertion Loss IN-OUT 5 -550 MHz ≦ 3.6 dB Max
  550 - 1000 MHz ≦ 4.5 dB Max
Isolation FM-TV 5 - 550 MHz ≧ 40 dB Min
  550 - 860 MHz ≧ 40 dB Min
  860 - 1000 MHz ≧ 40 dB Min
Isolation OUT-TV 5 - 550 MHz ≧ 25 dB Min
  550 - 860 MHz ≧ 24 dB Min
  880 - 1000 MHz ≧ 23 dB Min
Return Loss TV (MIN) 5 - 550 MHz ≧ 18 dB Min
  550 - 1000 MHz ≧ 18 dB Min
Return Loss FM (MIN) 88 - 108 MHz ≧ 18 dB Min
RFI (MIN) 5 - 1000 MHz ≧ 90 dB Min
Indepdance   75 Ω
