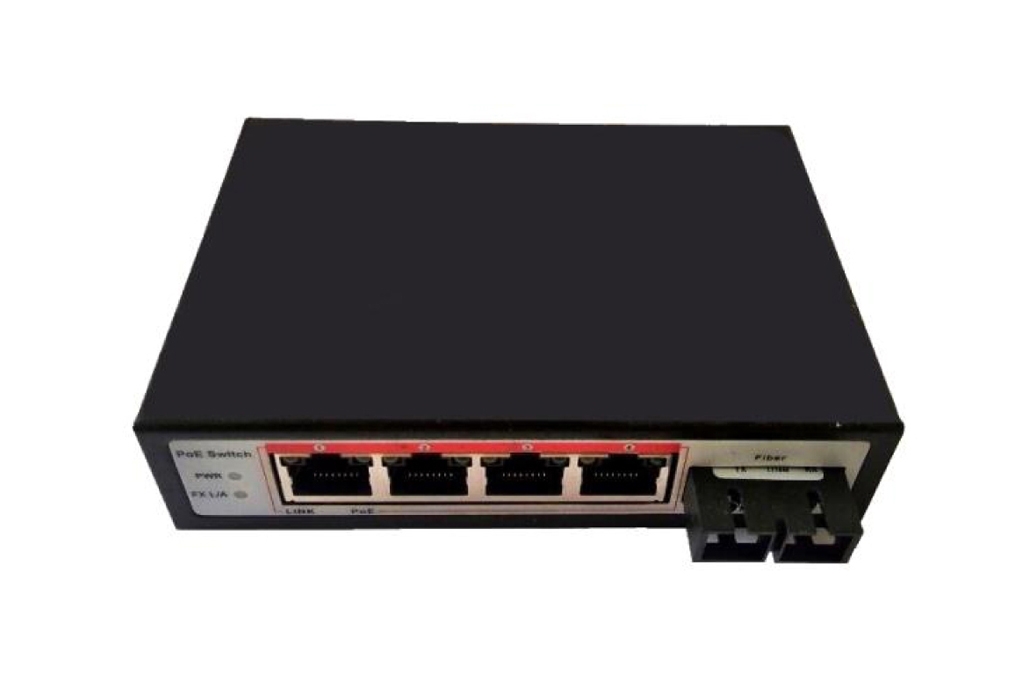

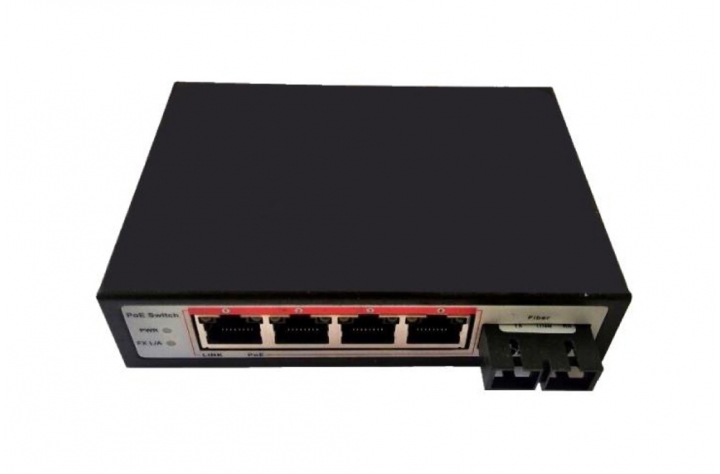

EETF-4PC
4 x 10/100M PoE Network Switch
Price: HK$0
download-icon Download Specification
Features
  • Support 10/100M full/half duplex
  • 4 POE ports to drive IEEE 802.3af compliant powered devices
  • MM dual fiber, 2km
  • Robust die-cast housing
Specification


General

Network standards IEEE802.3i 10 BASE-T, IEEE802.3i 100 BASE-TX, IEEE802.3x flow control, IEEE802.3af /IEEE802.3at
POE power 15.4/25.5W per port Wiring: Data & Power provided over pairs 1/2&3/6 and 4/5(+) & 7/8(-) Cable: UTP cat.5 or higher
Processing types Store-and forward Half-duplex back pressure and IEEE802.3X full-duplex flow control
Temperature -10℃~ 60℃ /Working, -20℃ ~ +70℃ /Storage
Net Weight 0.25kg
Input Voltage 46-52Vdc
Power supply Total power consumption: 60W, Total POE power budget: 60W
Performance spec Bandwidth: 1.6Gbps
  Network delay (100 to100Mbps):less than 2ms
  Buffer Memory:96KB
  Address Database Size:1000MAC/system
LED indicator System: Power, PoE max. power,  Per port: Link speed, PoE active, PoE error
Operating Humidity 10% -90%, Non-condensing
Size 11.9x9.0x2.5cm (LxWxH)
