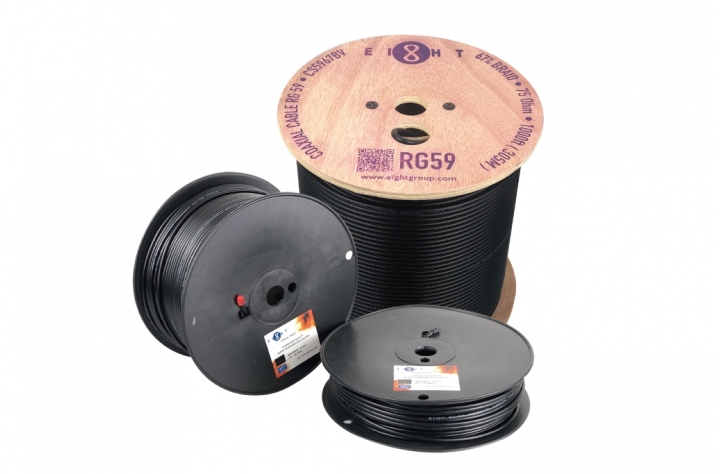

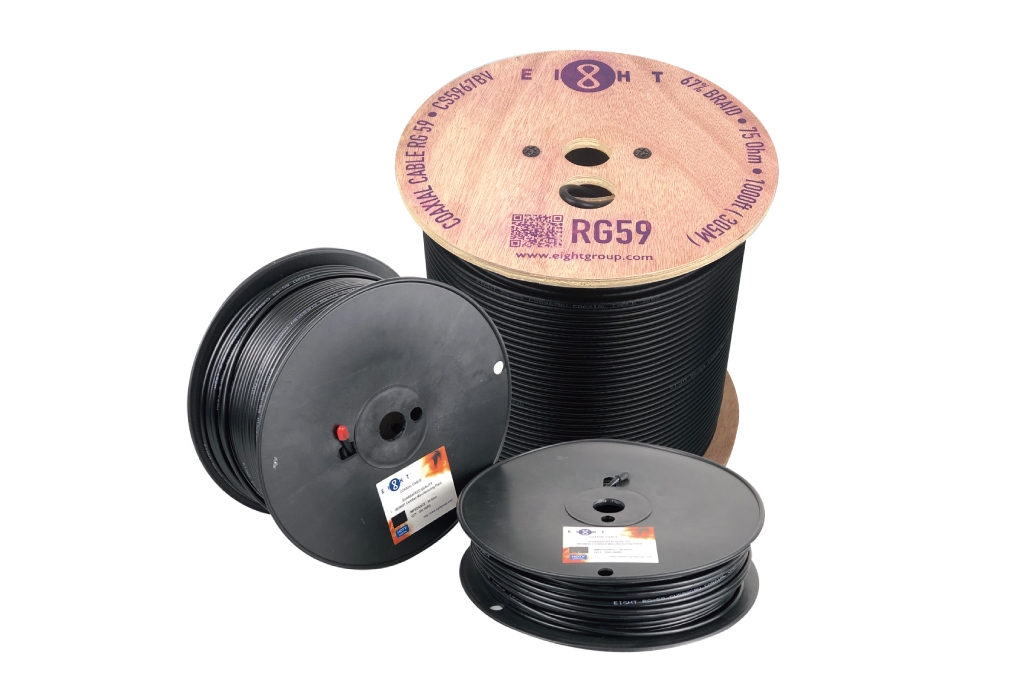

Features
- Dual bonding
- Application temperature - 20˚C ~ +60˚C
- Trishield and quadshield are available
- Messenger wire with different breaking strength options
- UL grade available, contact us for details
- LSZH Jacket option available
- ISO9001 Certified Manufacturing Plant
- Other options are available, please ask our sales
representative for detail
Specification
Construction
| Inner Conductor | Copper Clad Steel, 21% conductivity | |
| Braid Coverage, Aluminum Wire | 67% | |
| Center Conductor Diameter | 0.81 ± 0.0 mm | |
| Bonded Foam PE Dielectric | 3.66 ± 0.01 mm | |
| Sealed Tape APA | 3.86 ± 0.10 mm | |
| Aluminum Braiding | 4.5 (16 x 4 x 0.16 mm) | |
| PVC Jacket | 6.10 ± 0.10 mm |
Electric Specifications
| Inner Conductor Resistance | 159 Ω/km | |
| Outer Conductor Resistance | 31.43 Ω/km | |
| Loop Resistance | 190.43 Ω/km | |
| Nominal Capacitance | 53 | |
| Impedance | 75 ± 2 Ω | |
| Velocity of Propagation | 82% nominal |
Packing
| 100-yards Coil/Carton (6 Coils) | 28 x 28 x 45 cm | |
| Net Weight | 17.5 kg | |
| Gross Weigh | 18.5 kg | |
| 1000-Feet Reel Size | 28 x 10 x 28 cm | |
| Net Weigh | 10.5 kg | |
| Gross Weigh | 11.5 kg |
- Steel messenger wire 1.30 mm models are available with the above spec: CS5953BVM, CS5967BVM, CS5995BVM, CU5967BVM
- Flooding compound models are available with the above spec: CS5953BVMF, CS5967BVMF, CS5995BVMF, CU5967BVMF
- LSZH Jacket option available
Attenuation
| Frequency MHz | 5 | 55 | 211 | 250 | 270 | 300 | 330 | 400 | 450 | 500 | 550 | 600 | 750 | 870 | 1000 | 1500 | 2000 | 2050 | 2200 |
| Attenuation Nominal dB/100m | 2.23 | 5.96 | 11.63 | 12.66 | 13.21 | 13.91 | 14.70 | 16.13 | 17.14 | 18.10 | 19.01 | 19.89 | 22.34 | 24.14 | 25.97 | 32.15 | 37.90 | 39.60 | 40.98 |
- Attenuation increases with increasing temperature and decreases with decreasing temperature at the rate of 0.18% / oC
- DC resistance changes at the rate of 0.393% / oC
- All values are nominal figures
