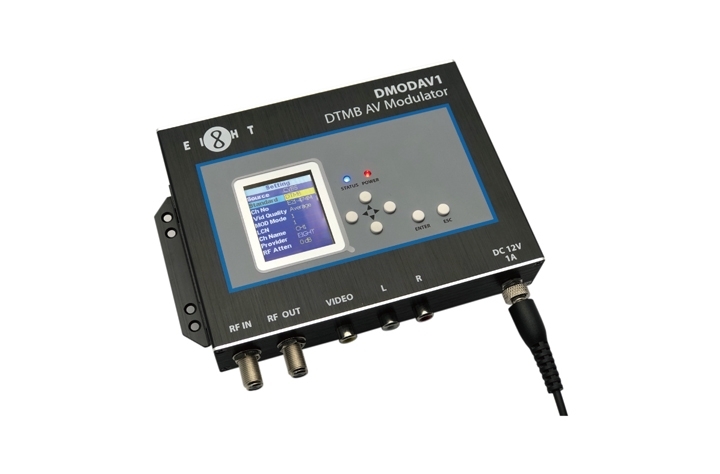

DMODAV1
DTMB AV Modulator
Price: HK$0
download-icon Download Specification
Features
  • Easy to use menu structure, in combination with push button
  • Small compact size that can place anywhere
Specification

Encoding Section

CVBS IN Video Encoding MPEG2
  Resolution PAL,NTSC
  Bit rate VBR (Max. 19 Mbps)
CVBS IN Audio Encoding MPEG1 Layer II
  Resolution 48KHz
Input Interface / Impedance RCA, 75Ω


Modulator Section

Standard   DTMB (GB20600-2006)
MER   35 dB
RF range   54-862MHz, Ch no(C1-C52, E21-E69)
RF output level 100 dBμV
Output Interface / Impedance F, 75Ω


General

Power supply DC12V 1A
Dimensions 150x115x32 mm (LxWxH)
Weight   420g
Operation temperature 0-50°C
