MAX22

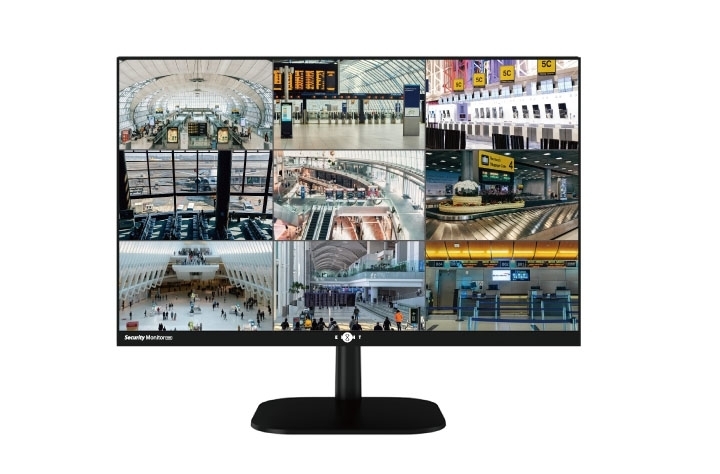

21.5" LED Security Monitor (16:9)
Price: HK$0
download-icon Download Specification
Features
  • Use for Video Surveillance and Security applications
  • HDMI, VGA, BNC and Audio input
  • Support 3D comb filter and 3D de-interlace high quality image
  • Auto-ON when video source is detected
  • LED panel with extra wide viewing angle
  • CE certified
  • HDMI certified
Specification


General

Panel Screen Size   21.5"
  Brightness 300 cd/m2
  Contrast (Typical) 1000:1 (Typical)
  Pixel Pitch (mm) 0.248 (H) x 0.248(V) mm
  Resolution (H x V) 1920 x 1080
  Aspect Ratio 16:9
  View Angles  H  178°/ V 178°
  Response time 5ms
  Display Colors 16.7M colors
PC Input Range Vertical Frequency 60Hz
  Display Frequency (Max) 1920 x 1080 /75Hz
Output Output BNC out
  Speaker (Max) 3Wx4Ω
Interface VGA  1
  HDMI 1
  BNC input 1
  Audio input 1
  Consumption (Max) On: ≤30W
    Standby≤0.5W, Typ. 18W
  Power 100-240V~ 50/60HZ
  Power Mode Indicator Light Power on : BLUE (LED)
    Power saving : RED (LED)
  Temperature 0°C~55°C
  Humidity 20% ~ 85%, non-condensing
  Weight 3.2 KG
  Dimension 509 x48 x373mm
  VESA 100 x 100 mm
