Features

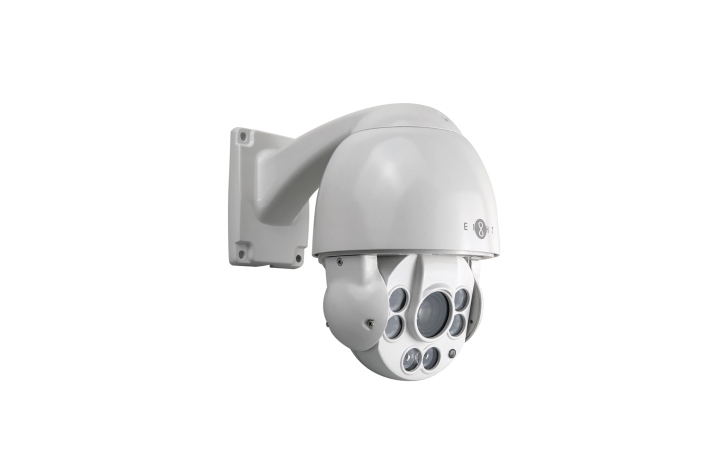

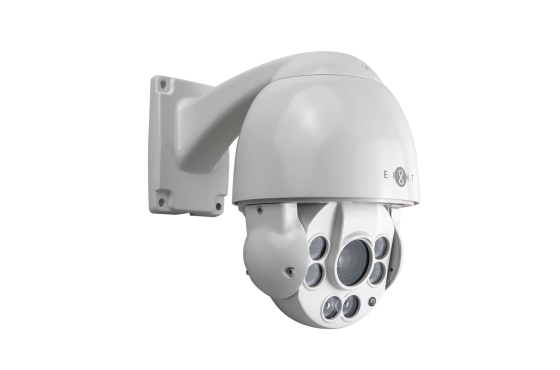

- Indoor / Outdoor dome camera
- 2MP
- Keep original analog system
- Real time transmission
- Lossless video
- High definition 1080P
- 10X zoom
Specification
Camera
Effective Pixels | 1080P |
Total Pixels | 2MP |
Lans | 10x optical zoom |
3DNR | Support |
Focal Length | 5mm~50mm |
Min. illmination | Color: 0.1Lux, B/W:0.01Lux, IR ON:0Lux |
BLC | On / Off |
WB | Indoor / outdoor / auto / manual |
D/N | IR-Cut |
S/N Ratio | ≧50dB |
Dome
Pan Range | 360˚ continuous rotation |
Tilt Range | 0˚~92˚ auto flip 180 |
Manual Pan Speed | 0.02˚~60˚/S |
Manual Tilt Speed | 0.02˚~30˚/S |
Preset Points | 220 |
Operating Temperature | -30˚C~65˚C |
Operating Menu | English |
Operating Humidity | ≦90% Non condensing |
Power Source | 12V |
Power Consumption | 30W Max |
Lightning Ptotection | Transient voltage 6000V |
Video Output | AHD |
Communication Mode | RS485(+/-) |
IR Distance | Up to 50 meters |
Dimension | 136 x 322.5 mm |
