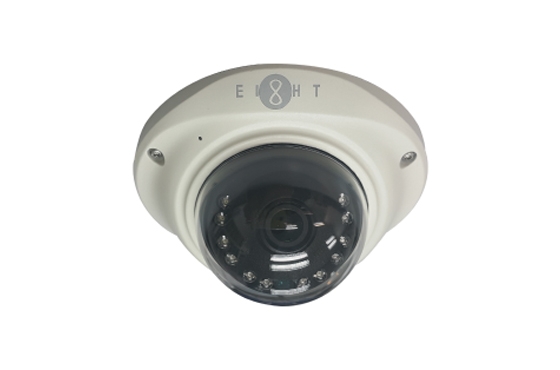

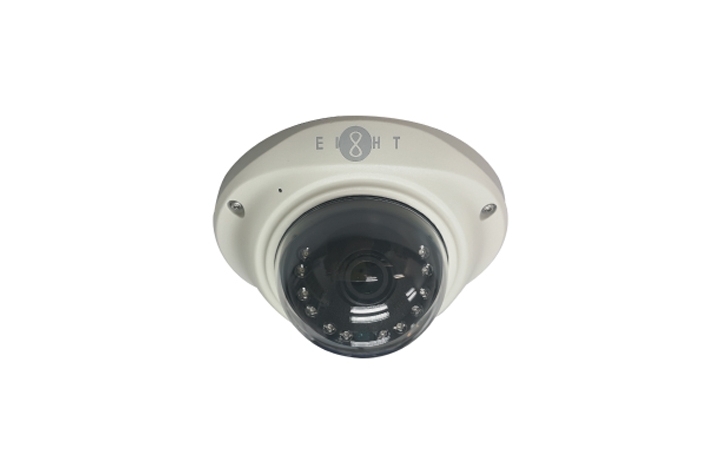

EAD-200R
2 Megapixel with IR AHD Slim Dome Camera
Price: HK$0
download-icon Download Specification
Features
  • Indoor dome camera
  • 2.0MP
  • Fixed lens 3.6mm @F1.2
  • 1/2.9” COMS
  • 12 IR LEDs, 15M
  • Slim size
  • Aluminum housing
  • Optional lens 2.8, 3.6 mm
  • In-line control unit



Specification

Video

Signal System PAL / NTSC
Imaging Sensor 2MP CMOS Imaging Sensor
Pixels 1920 x 1080
Resolution 1080P
Lens Type 3.6mm@F1.2
Minimum Illumination Color 0.01 Lux B/W 0 Lux (IR LED ON)
Day & Night Yes
Sync. System Internal
S/N Ratio / DWDR Digital >50dB
Video Output Signal 1Vp-p, 75Ω


Operational

Backlight Compensation BLC / HSBLC / OFF
DNR 2D + 3D - DNR
Electronic Shutter Speed Auto, 1/50 - 1/500000s
White Balance AWB, ATW, Indoor, Outdoor, Manual
Privacy Zone Masking 4 Zones
Motion Detection Yes
Digital Effect Off / V-Flip / Mirror / Rotate
Multi OSD Language ENG, CHN
Communication Coaxial Communcation (UTC)


General

Power Consumption 2.0W
Operating Temperature / Humidity -10˚C ~ 50˚C / < 90%
Storage Temperature /  Humidity -40˚C ~ +60˚C / 20 ~ 95%
Dimension 52 x Ø113.5mm
