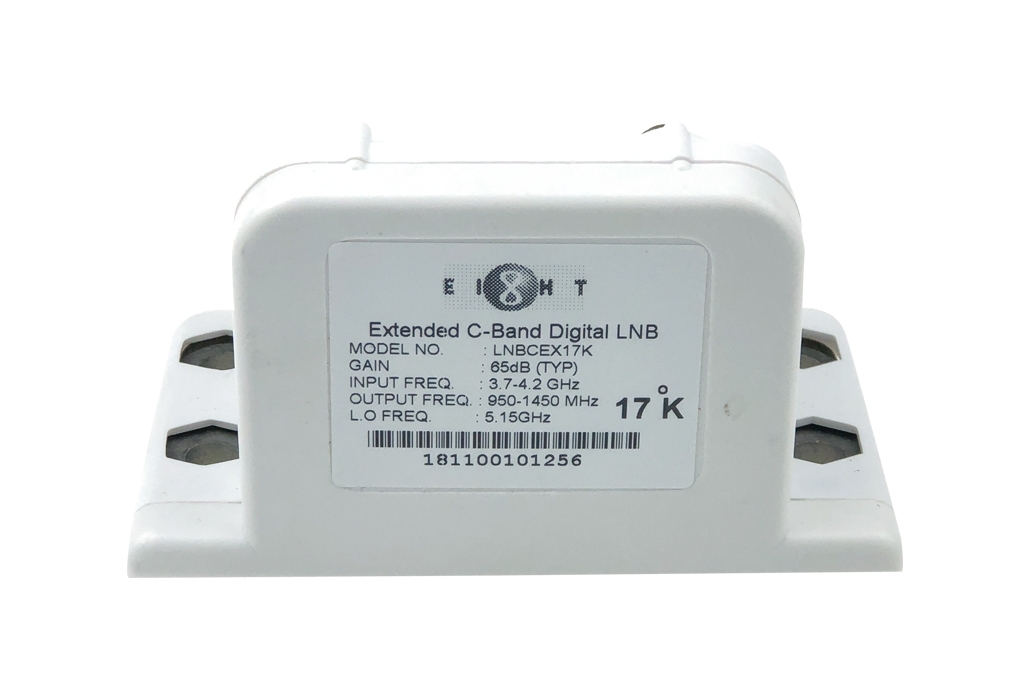

Features
- Ultra light
- Compact size
- Extended C band range
Specification
General
| Band | C band LNB | |
| Input Frequency | 3.7~ 4.2 GHz | |
| Output Frequency | 950 ~ 1450 MHz | |
| L.O & Stability (Over Temperature) | 5.15 GHz ± 2.5 MHz | |
| Noise Temperature (@+25 degree C) | 25 ~ 35K (max) | |
| Input VSWR | 2.5:1 (typ) | |
| Image Rejection | 40 dBc (min) | |
| Conversion Gain | 66 dB typ (62dB min, 72dB max) | |
| 1 dB Gain Compression Point | 5 dBm (typ) | |
| Output VSWR | 2:1 (typ) | |
| Gain Flatness | 6 dBp-p (max) | |
| Gain Ripple (@ per channel) | ± 0.75 dB (max) | |
| Output Impedance | 75 Ω | |
| Leakage (@ Input port) | -60 dBm (max) | |
| Phase Noise | -80 dBc/Hz (@10KHz) | |
| -95 dBc/Hz (@100KHz) | ||
| -110 dBc/Hz (@1MHz) | ||
| Power Supply | 12 ~ 24V DC | |
| Requires Current | 150mA (max) | |
| Operating Temperature | -30°C ~ 60°C | |
| Storage Temperature | -40°C ~ 80°C | |
| Relative Humidity | 0% ~ 95% RH | |
| Input Waveguide Flange | WR-229 | |
| IF Output Connector | F-Type Female |
