SHQ-OFT

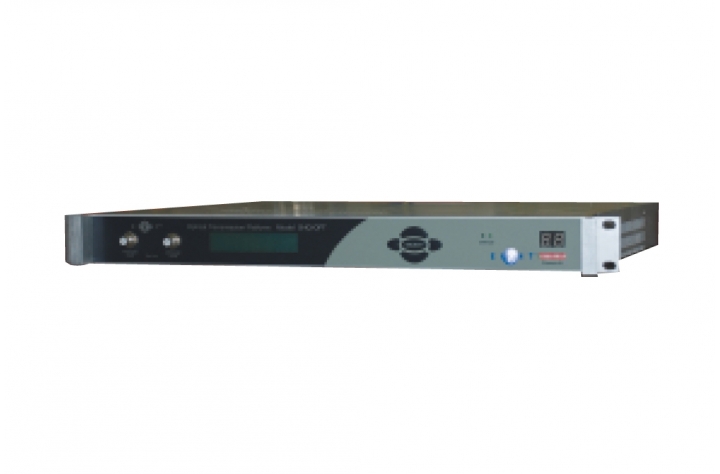

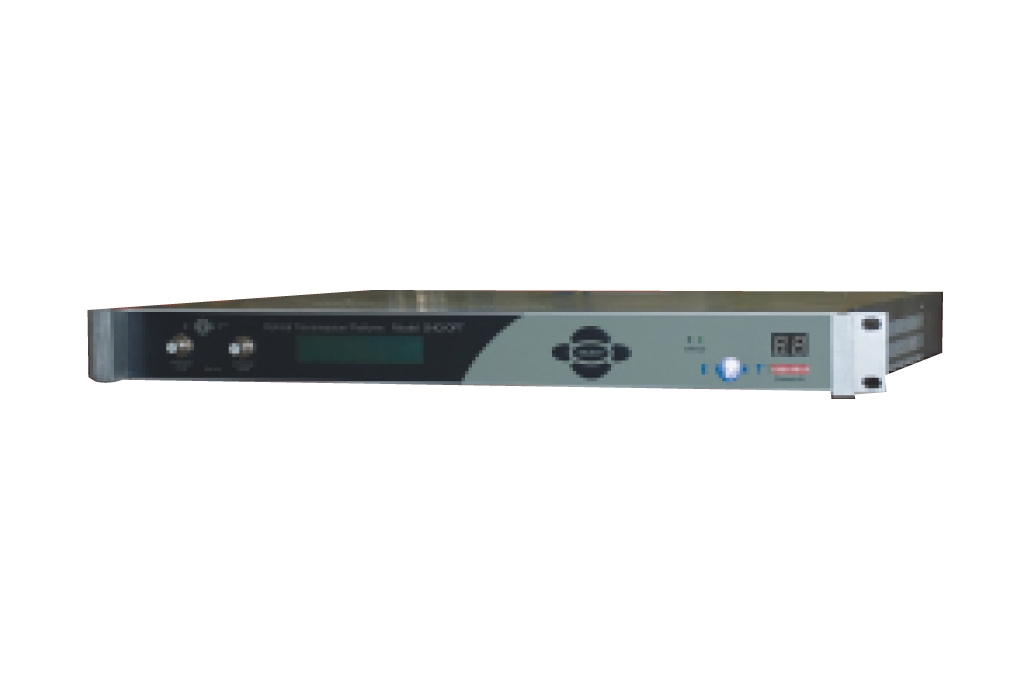

Optical Transmitter
Price: HK$0
download-icon Download Specification
Features
  • 870 MHz bandwidth
  • High-performance DFB laser to increase the signal quality
  • Low noise, low distortion and pre-AMP to meet low RF input signal
  • ATC (Automatic Temperature Control) and APC (Automatic Power Control) maintain precise optical power level
  • Front panel RF test point (-20dB)
  • Front panel LCD display
  • Advanced high efficiency switching power supply
Specification


General

Type of Laser DFB
Wavelength 1310 ± 20 nm
Output Optical Power 10, 13, 16 mW (Optional)
Fiber Connector SC / APC
Optical Return Loss >55dB
Frequency Range 47 ~ 870 MHz
Input RF Signal Level 80 ± 3 dBμV
CNR (NOTE) ≥ 52dB
CTB (NOTE) -67dBc
CSO (NOTE) -62dBc
Flatness ± 0.75dB
RF Input / Impedance F, 75 Ω
RF Input Return Loss ≥ -15 dB
APC Control Precision ≤ ± 0.1 dB
ATC Control Precision 25 ± 1°C
Max TEC Operating Current DC+5V: 0.85 A
MTBF ≥ 40000 h
Laser Operating Temperature Range 5°C  - 40°C
Overal Storage Temperature Range -25°C  - 55°C
Overall Relative Humidity 40 ~ 70%
Overall Power Supply Input (with Filter) AC220 V (176 - 264V)
Communication Interface RS232 / 485
Power Dissipation 50 W
Dimensions 480 x 350 x 44 mm
Weight 3 Kg
