FTMB-SLIM-6D-SM-SCU

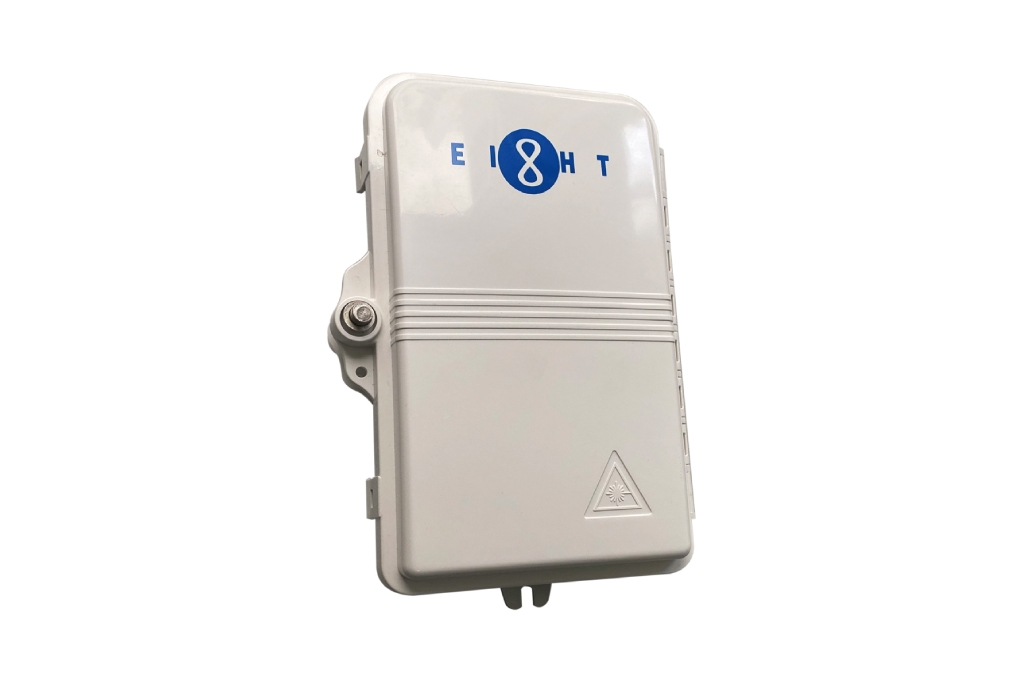

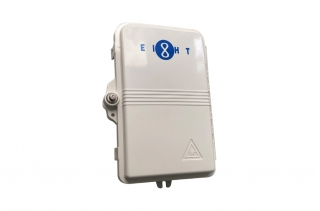

Outdoor Slim Fiber SC/UPC Single Mode Terminal Box
Coupler No.:
Price: HK$0
download-icon Download Specification
Features
  • Water-proof design for outdoor uses
  • Ready for wall mount – installation kits provided
  • Double-layer design for easier installation and maintenances
  • Lower layer for splitters and over length fiber storage

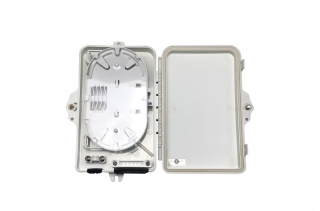

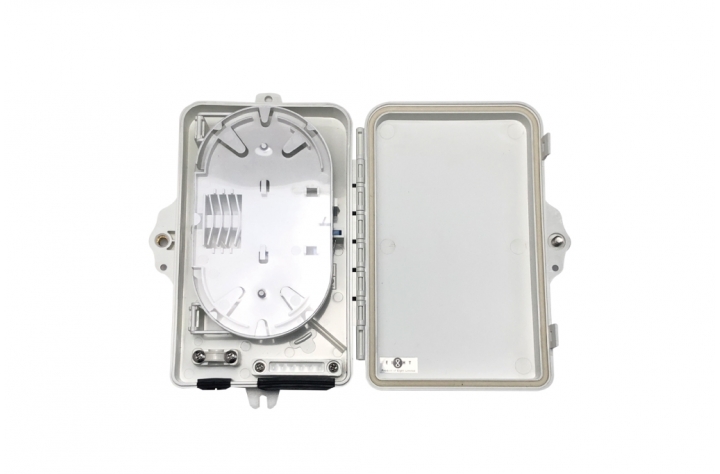

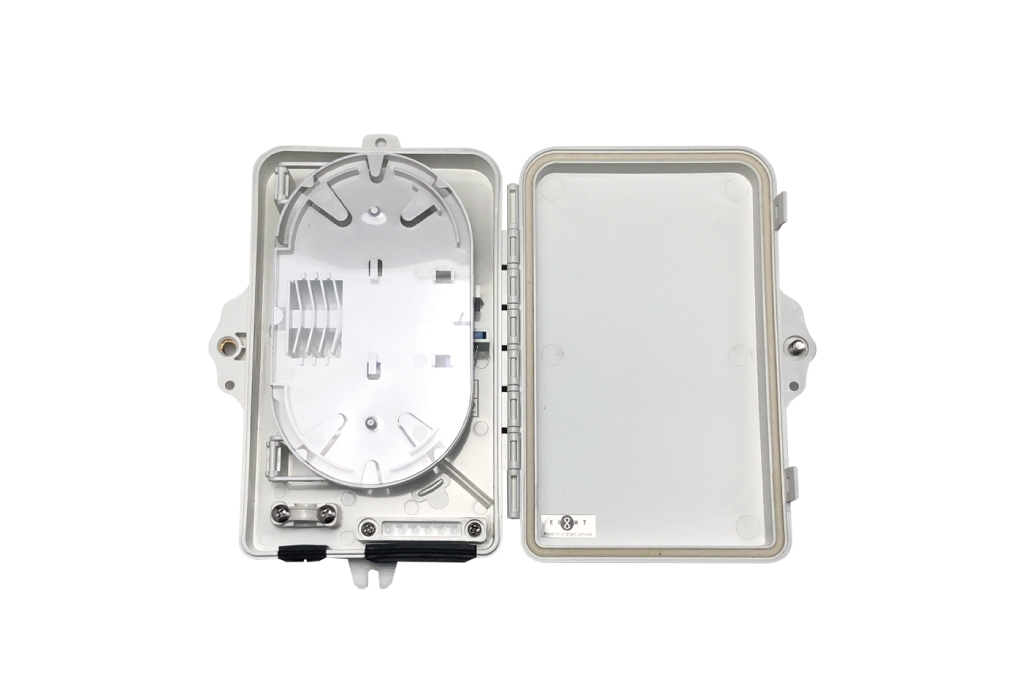

  • Upper layer for splicing, cross-connecting and fiber distribution
  • Cable fixing units provided for fixing the outdoor optical cable
  • Accommodates both cable glands as well as tie-wraps
  • Lock provided for extra security
Specification


General

Max Capacity 6 cores SC
Working Temprature 40°C~+80°C
Relative Humidity <85% (+30°C)
Atmospheric Pressure 70Kpa~106Kpa
Insertion Loss <0.2db
UPC Return Loss >50db
APC Return Loss >60db
Life of Insection and Extraction >1000 times
Size 215 x 140 x 40 mm
