FPT-LCU-M4Z

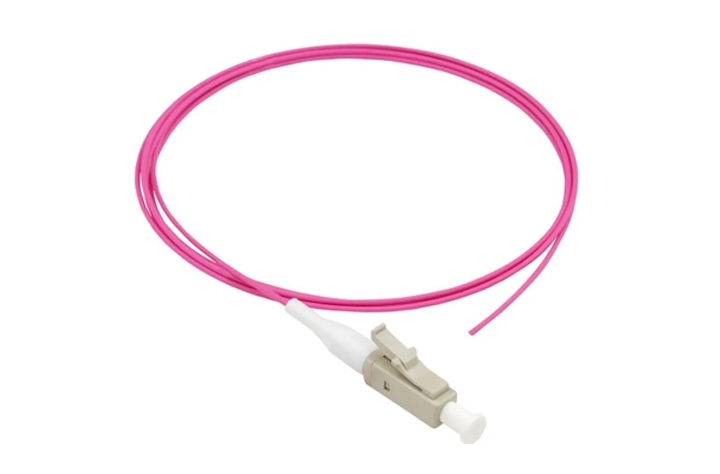

Multimode OM4 LC/UPC Fiber Pigtail
Price: HK$0
download-icon Download Specification
Features
  • Low insertion loss
  • Good repeatability
  • Application:
    Fiber optic communication system, fiber optic CATV, fiber optic data transmission, LAN
  • Cable complies with IEC60332-1-2:2015, IEC61034-2:2019, IEC60754-1:2019, IEC60793, IEC62321:2008,  IEC62321-5,  ITU-TG652
Specification


General

Parameter UPC
Operating Wavelength 850 nm,1300 nm
Insertion Loss ≤ 0.3 dB
Return Loss /
Fiber Type OM4
Exchange ≤ 0.2 dB
Repeatability ≤ 0.2 dB
Service Life > 1000 times
Connectors Type LC
Cable Type Tight Buffer
Sheath Materials LSZH
Loose Sleeve 900 µm
Length 1 M
Tensile Strength > 10 kg
Temperature Range - 40 °C ~ 85 °C


***FPT-LCU-MM-OM4-1M is replaced by FPT-LCU-M4Z
