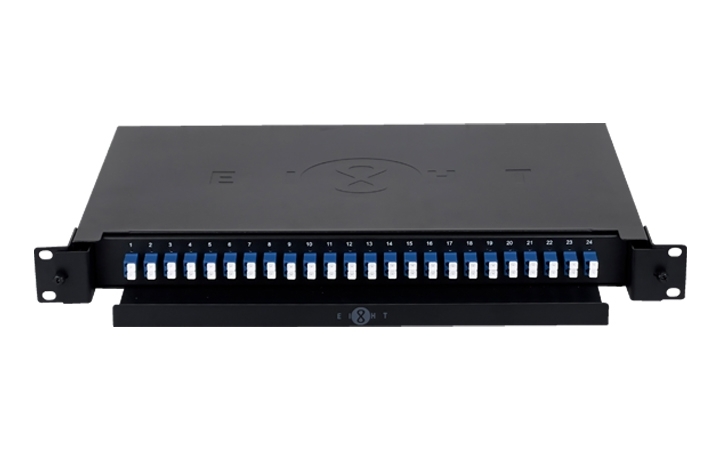

LC SM patch panel

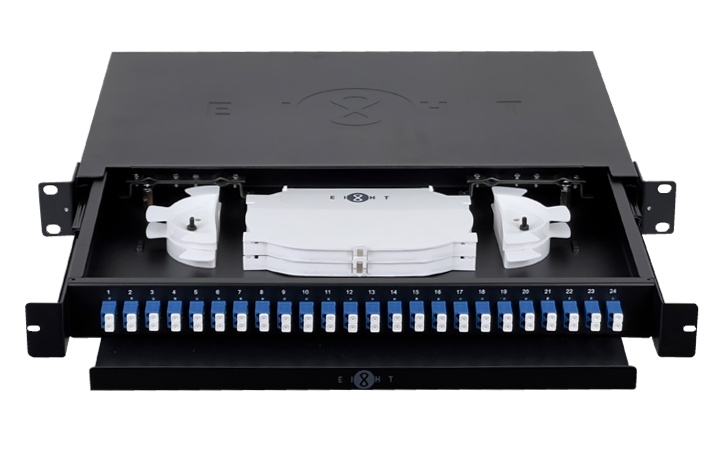

LC SM inner
LC SM patch panel
LC SM inner
FP-SM-LCU Series
LC/UPC Single Mode Optical Fiber Patch Panel
Model:
FP-06D-SM-LCU
FP-08D-SM-LCU
FP-12D-SM-LCU
FP-24D-SM-LCU
FP-XXD-SM-LCU
Coupler / Capacity No.:
6 Coupler / 12 Cores
Coupler / Capacity No.:
8 Coupler / 16 Cores
Coupler / Capacity No.:
12 Coupler / 24 Cores
Coupler / Capacity No.:
24 Coupler / 48 Cores
Coupler / Capacity No.:
Customize
Price: HK$0
download-icon Download Specification
Features Specification Download Documents
Features
  • Comply with ANSI/EIA, RS-310-D; IEC297-2; DIN41491: PART 1; DIN41491: PART 7; GB/T3047.2-92 standard, compatible with19” international standard, metric system and ETSI standard
  • Steel Construction
  • Sliding rail design for easy access
  • LC, ST, FC, SC & Adapter available
Specification


General

Size 19”, 1U
For Number of Coupler Up to 24
Max Capacity  48 Cores
Color Black
Dimension 435(W) x 275(D) x 45.5(H) mm




Download Documents
Related Products
SCA
FP-SM-SCA Series

SC/APC Single Mode Optical Fiber Patch Panel

- Comply with ANSI/EIA, RS-310-D; IEC297-2; DIN41491: PART 1; DIN41491: PART 7; GB/T3047.2-92 standard, compatible with19” international standard, metric system and ETSI standard
FPT-FCA-SM
FPT-FCA-SMZ

Single Mode OS2 FC/APC Fiber Pigtail

- Cable complies with IEC60332-1-2:2015, IEC61034-2:2019, IEC60754-1:2019, IEC60793, IEC62321:2008,  IEC62321-5,  ITU-TG652
FPT-SCA-MM-M4Z s
FPT-SCA-M4Z

Multimode OM4 SC/APC Fiber Pigtail

- Cable complies with IEC60332-1-2:2015, IEC61034-2:2019, IEC60754-1:2019, IEC60793, IEC62321:2008,  IEC62321-5,  ITU-TG652
FTMB-SLIM-OM3-LCU
FTMB-SLIM-6D-M3-LCU

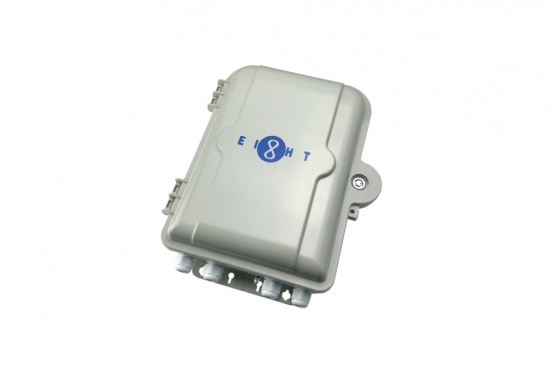

Outdoor Slim Fiber LC/UPC Multimode OM3 Terminal Box
