Features
- Accommodates 23~26 AWG solid wire
- High quality
- Easy to install
Specification
Physical Characteristics

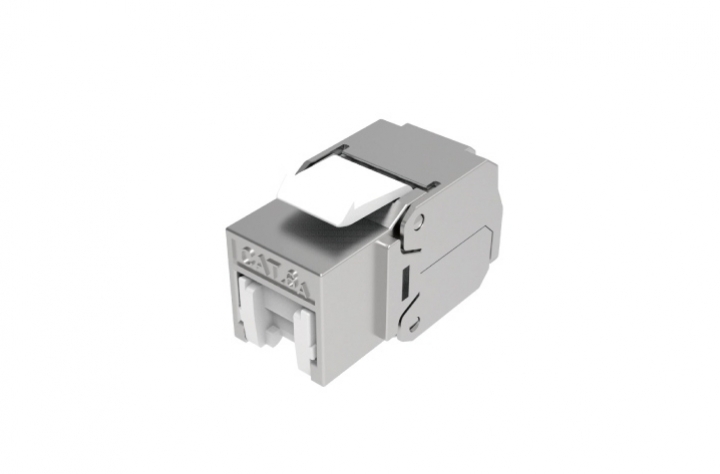

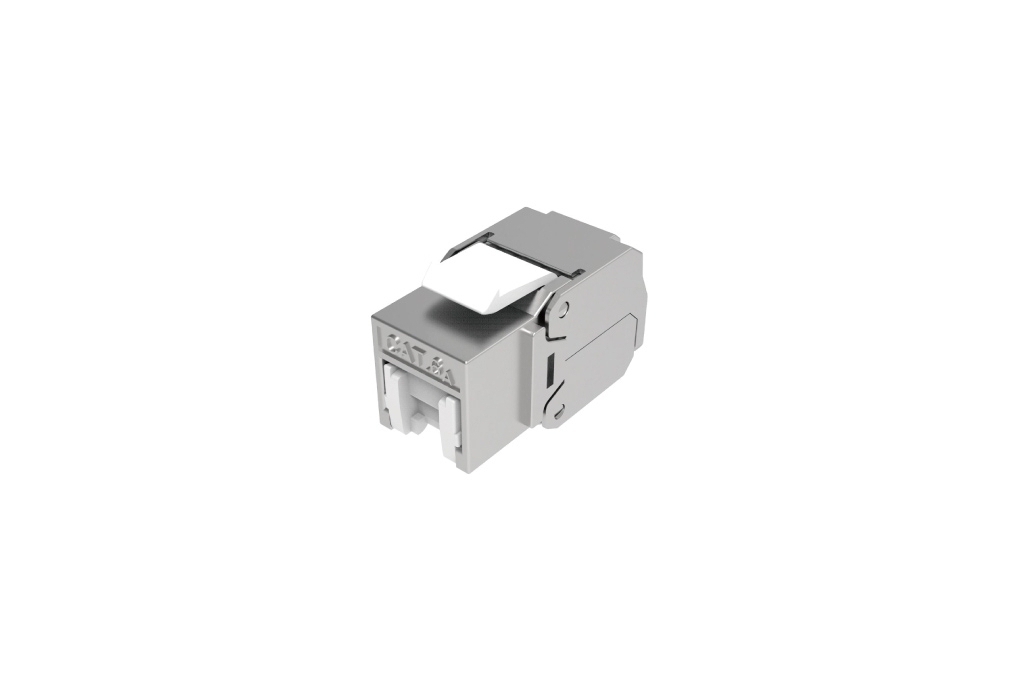

| Keystone Jack Housing | Zinc die-casting w/nickel plated |
| Spring PIN | Phosphor bronze C5210-EH, T=0.35MM Plating nickel undercoat, Besides plating 50U” gold over the plated surface on contact area |
| IDC Housing | PC High-impact UL94V-O thermoplastic |
| IDC Terminals | Phosphor bronze, Tin over nickel undercoat |
| PCB | FR-4 |
Physical Characteristics
| Insertion Life | 750 mating cycles with FCC Compliant 8P plug |
| Plug Retention Force | 11 LBF min. |
| Durability | 20 termination cycles. |
| Contact Compatibility | 23~26 AWG solid |
| Operating Temperature Range | -10°C~60°C |
| Storage Temperature Range | -40°C~68°C |
| Humidity | 10%~90% RH. |
Electrical
| Insulation Resistance | 500 mΩ |
| Dielectric with standing Voltage | 1000 VAC |
| DC Current Rating | 1.5 Amps . |
| DC Resistance | 0.1Ω |
| Contact Resistance | 20 mΩ |
