Features
- Conductor: 24 AWG, Solid-Bare Copper
- Outer Jacket: PVC (Complies RoHS)
- Standard: ISO/IEC11801, TIA-568-C.2
- ISO9001 Certified Manufacturing Plant
Specification
Standard
| Standard |
ISO/IEC11801, TIA-568-C.2 ISO9001 Certified Manufacturing Plant |
General

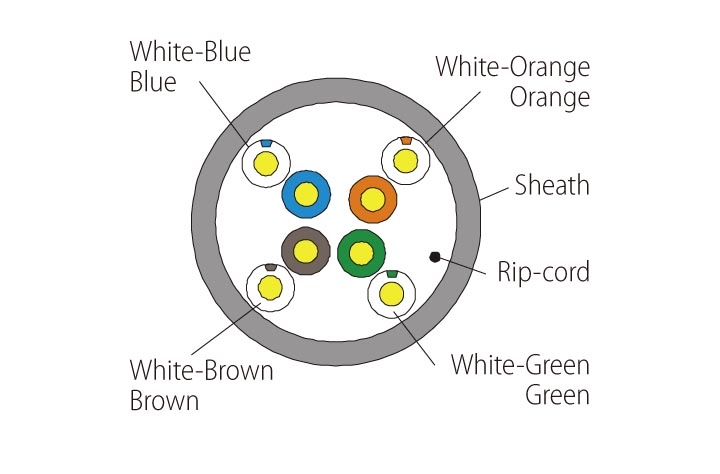

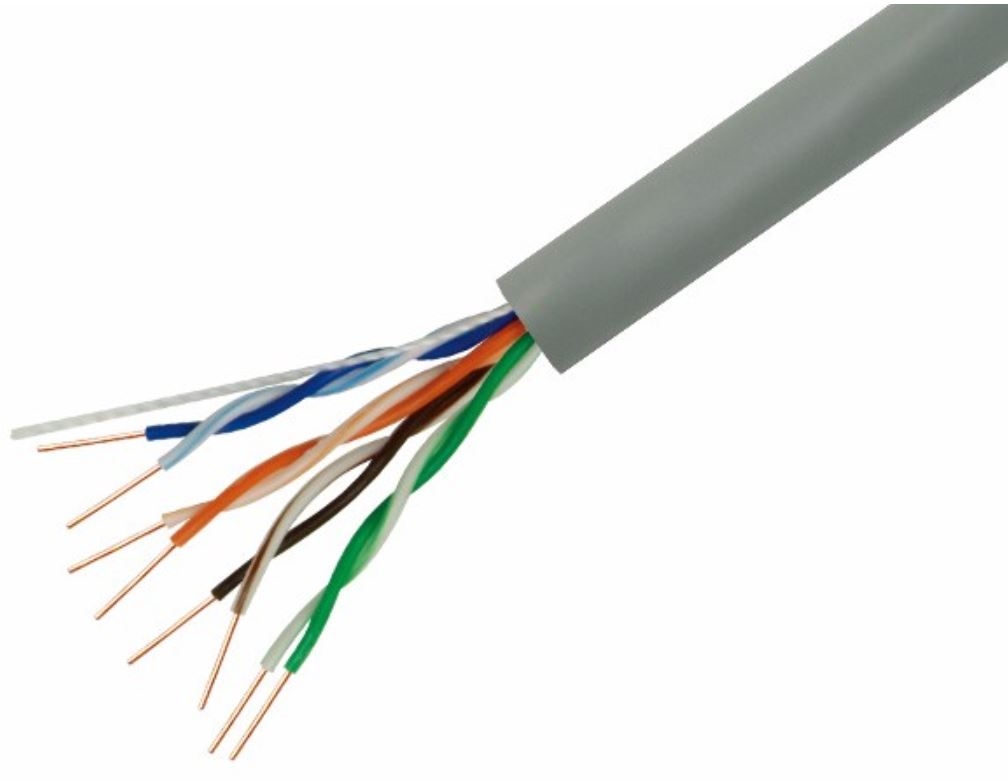

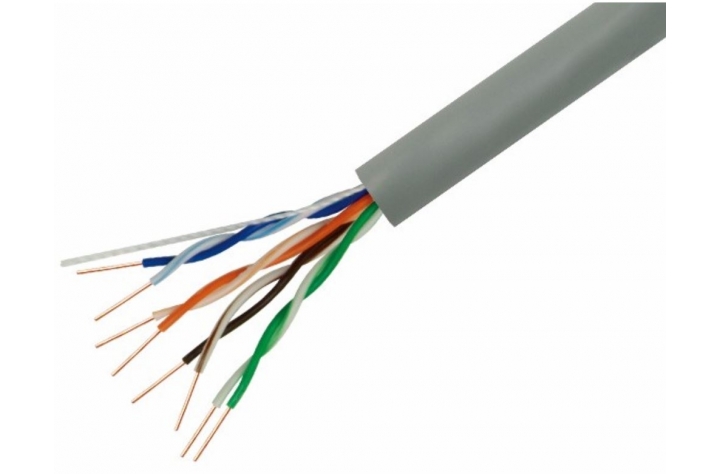

| Construction | U/UTP | ||
| Conductor | Material | Solid-Bare Copper | |
| Nom.O.D. | 0.500 ± 0.005 mm | ||
| Insulation | Material & Diameter | HDPE (0.88 ± 0.05 mm) | |
| Sheath | Thickness | 0.50 ± 0.05 mm | |
| External O.D. | 5.0 ± 0.4 mm | ||
| Material | PVC (Complies RoHS) | ||
| Rip-cord | Yes | ||
| Sheath Physical Properties (Before Aging) | Tensile Strength | ≥ 13.5 Mpa | |
| Elongation | ≥ 150 % | ||
| Aging Period | 100 °C x 24h x 7d | ||
| Sheath Physical Properties (After Aging) | Tensile Strength | ≥ 12.5 Mpa | |
| Elongation | ≥ 125 % | ||
| Cold Bend | -20 ± 2 °C x 4h, 8 x Cable O.D., No visible cracks | ||
| Electrical Characteristics (20°C) | Impedance | 1.0-100.0 MHz: 100 Ω ± 15 Ω | |
| Delay Skew | 1.0-100.0 MHz: ≤45 ns / 100 m | ||
| DC Resistance | Max. 9.5 Ω /100 m | ||
| DC Conductor Resistance Unbalance | Max. 5.0 % |
Electric Performance
|
Frequency (MHz) |
Return Loss (≥dB) |
Attenuation(20°C) (≤dB) |
NEXT (≥dB) |
PHASE DELAY (≤ns) |
PSNEXT (≥dB) |
ELFEXT (≥dB) |
PSELFEXT (≥dB) |
| 1 | 20 | 2 | 65.3 | 570 | 62.3 | 63.8 | 60.8 |
| 4 | 23 | 4.1 | 56.3 | 552 | 53.3 | 51.8 | 48.8 |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 48.8 | 45.7 | 42.7 |
| 10 | 25 | 6.5 | 50.3 | 545.38 | 47.3 | 43.8 | 40.8 |
| 16 | 25 | 8.2 | 47.2 | 543 | 44.4 | 39.7 | 36.7 |
| 20 | 25 | 9.3 | 45.8 | 542.05 | 42.8 | 37.8 | 34.8 |
| 25 | 24.3 | 10.4 | 44.3 | 541.2 | 41.3 | 35.8 | 32.8 |
| 31.25 | 23.6 | 11.7 | 42.9 | 540.44 | 39.9 | 33.9 | 30.9 |
| 62.5 | 21.5 | 17 | 38.4 | 538.55 | 35.4 | 27.9 | 24.9 |
| 100 | 20.1 | 22 | 35.3 | 537.6 | 32.3 | 23.8 | 20.8 |
