Download Specification

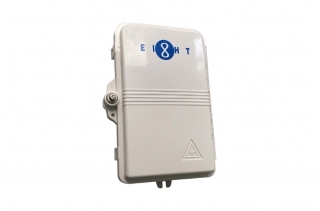

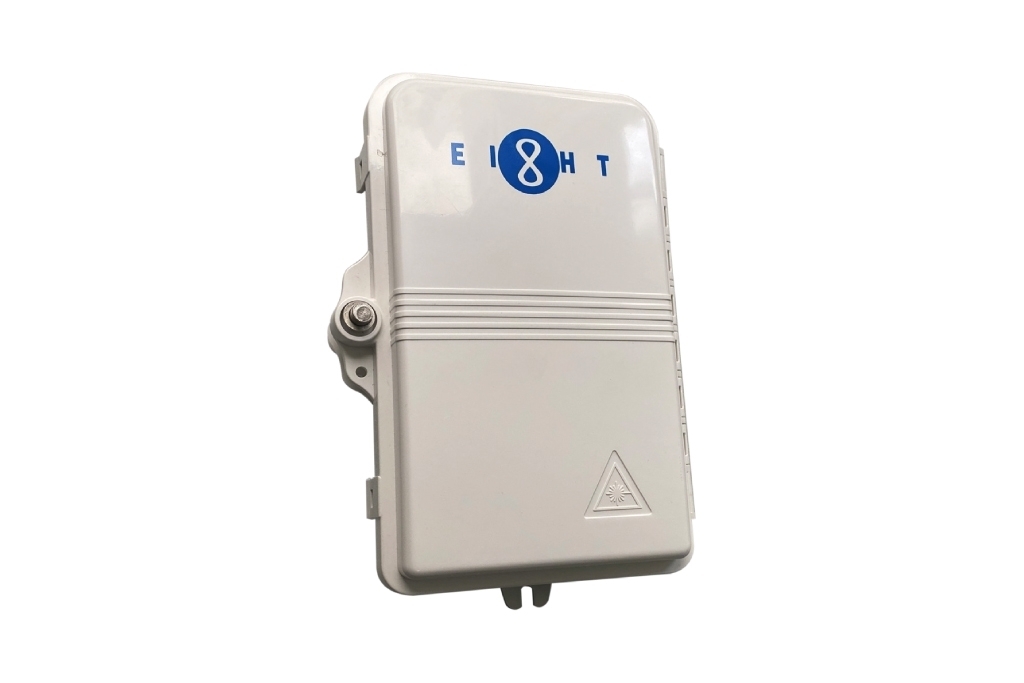

Features
- Water-proof design for outdoor uses
- Ready for wall mount – installation kits provided
- Double-layer design for easier installation and maintenances
- Lower layer for splitters and over length fiber storage
- Upper layer for splicing, cross-connecting and fiber distribution
- Cable fixing units provided for fixing the outdoor optical cable
- Accommodates both cable glands as well as tie-wraps
- Lock provided for extra security
Specification
General
| Max Capacity | 6 cores SC | |
| Working Temprature | 40°C~+80°C | |
| Relative Humidity | <85% (+30°C) | |
| Atmospheric Pressure | 70Kpa~106Kpa | |
| Insertion Loss | <0.2db | |
| UPC Return Loss | >50db | |
| APC Return Loss | >60db | |
| Life of Insection and Extraction | >1000 times | |
| Size | 215 x 140 x 40 mm |
