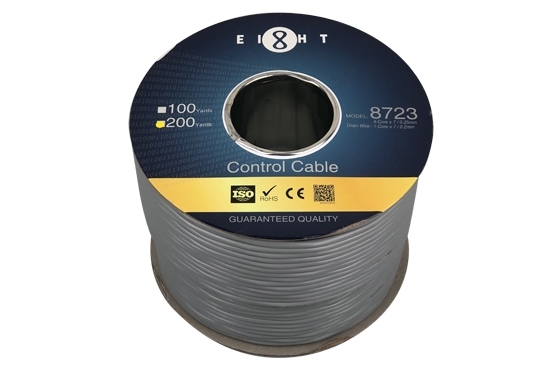

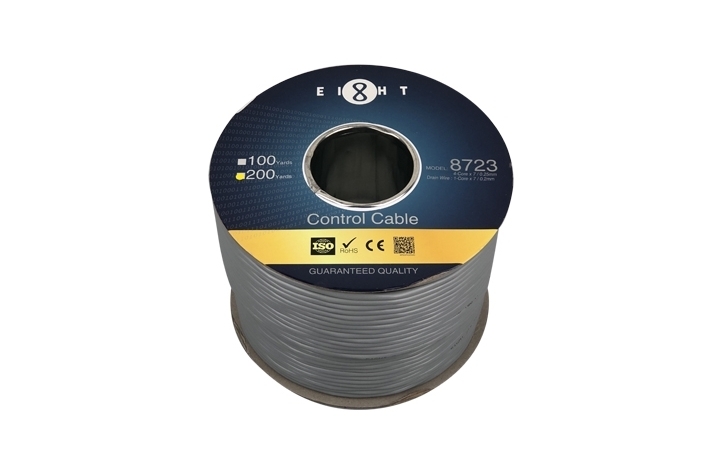

8723 LSZH
Control Cable
Price: HK$0
download-icon Download Specification
Features
  • Power limited controls
  • Single line telephone
  • Security systems
Specification


General

Conductor Material TC
  Diameter 0.25mm
  Max Resistance(20°C) 52Ω/km
  Construction 2x(2x7/0.25)mm TC
Insulation Insulation LSZH
  Insulation Thickness
  Insulation Diameter 1.20mm±0.05mm
  Insulation Color White, Black, Red, Green
Jacket Jacket Material LSZH
  Jacket Color Grey
  Jacket Thickness 0.7mm±0.05mm
  Jacket O.D 5.2 mm±0.1mm
Shield AL Foil AL Foil
  Drain Wire 7/0.2mm TC
Operation Temperature -15°C to +65°C
Working voltage 300/300V

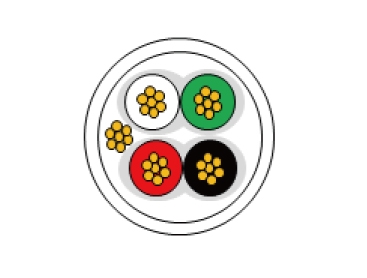

Construction

Self Photos / Files - 8723Construction
