Download Specification
Features
- Dual bonding
- Application temperature - 20˚C ~ +60˚C
- Trishield and quadshield are available
- Messenger wire with different breaking strength options
- UL grade available, contact us for details
- ISO9001 Certified Manufacturing Plant
- Other options are available, please ask our sales
representative for detail
Specification
Construction
| Inner Conductor | Copper Clad Steel 21% conductivity | |
| Braid Coverage, Aluminum Wire | 60% | |
| Center Conductor Diameter | 1.63 ± 0.01 mm | |
| Bonded Foam PE Dielectric | 7.11 ± 0.15 mm | |
| Sealed Tape | 7.32 ± 0.15 (APA) mm | |
| Aluminum Braiding | 7.96 (16 x 6 x 0.16 mm) |
Electric Specifications
| Nominal DC Resistance Inner Conductor | 40 Ω / km | |
| Nominal DC Resistance Outer Conductor | 20.7 Ω / km | |
| Nominal DC Resistance Loop | 60.7 Ω / km | |
| Nominal Capacitance | 53.0 pF /m | |
| Impedance | 75 ± 2 Ω | |
| Nominal Velocity of Propagation | 82% nominal |
Packing

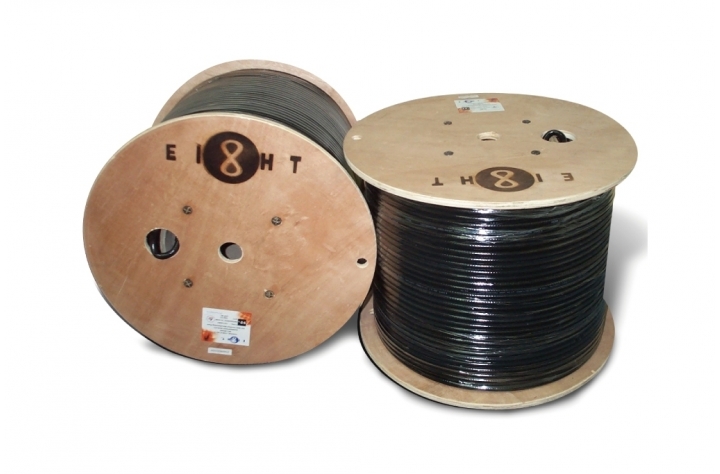

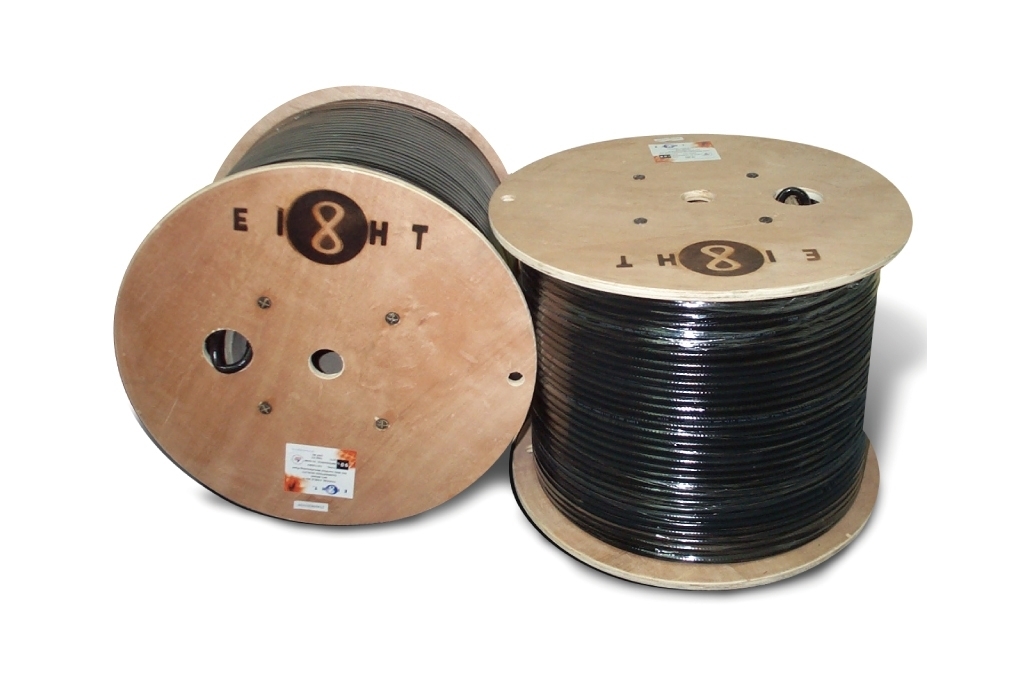

| 1000-Feet Reel Size | 43 x 21 x 35.5 cm | |
| Net Weight | 24 kg | |
| Gross Weight | 25 kg |
- Steel messenger wire 1.83mm models are available with the above spec: CS1160BVM, CS1190BVM, CU1160BVM
- Flooding compound models are available with the above spec: CS1160BVMF, CS1190BVMF, CU1160BVMF
- Armoured type CS1160BVA with steel wire armour
Attenuation
| Frequency MHz | 5 | 55 | 211 | 250 | 270 | 300 | 330 | 400 | 450 | 550 | 600 | 750 | 870 | 1000 | 1500 | 2000 | 2050 | 2200 |
| Attenuation Nominal dB/100m | 1.2 | 3.01 | 5.65 | 6.19 | 6.48 | 6.86 | 7.31 | 8.01 | 8.55 | 9.03 | 9.97 | 11.24 | 12.15 | 13.15 | 17.35 | 19.22 | 19.45 | 20.37 |
- Attenuation increases with increasing temperature and decreases with decreasing temperature at the rate of 0.18% / oC
- DC resistance changes at the rate of 0.393% / oC
- All values are nominal figures
