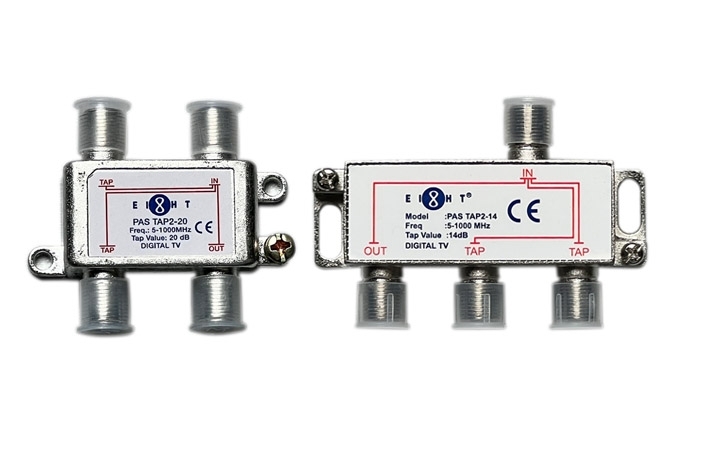

Features
- Zinc die cast housing, nickel-plated
- All ports F-(f) connector , 75Ω
- Grounding terminal provided
- Two pieces of screws attached
- Low insertion loss , high return loss and isolation
- Particularly designed for easy and convenient installation
- Screening factor:
30~300MHz ≥ 75dB
300~470MHz ≥ 75dB
470~1000MHz ≥ 65dB
Specification
General
| Insertion Loss(dB) IN-OUT | 5 - 40 MHz | ≤ 1.5 |
| 40 - 470 MHz | ≤ 2.0 | |
| 470 - 1000 MHz | ≤ 2.5 | |
| Tap Loss(dB) IN-TAP | 5 - 40 MHz | 12 ± 1.5 |
| 40 - 1000 MHz | 12 ± 1.5 | |
| Reverse Isolation(dB) OUT-TAP | 5 - 40 MHz | ≥ 28 |
| 40 - 470 MHz | ≥ 25 | |
| 470 - 1000 MHz | ≥ 20 | |
| Mutual Isolation(dB) TAP-TAP | 5 - 40 MHz | ≥ 27 |
| 40 - 470 MHz | ≥ 25 | |
| 470 - 1000 MHz | ≥ 25 | |
| Return Loss(dB) IN、OUT、TAP | 5 - 40 MHz | ≥ 18 |
| 40 - 470 MHz | ≥ 20 | |
| 470 - 1000 MHz | ≥ 16 | |
| Dimensions (L x Hx D) | 78 x 53 x 26 mm |
