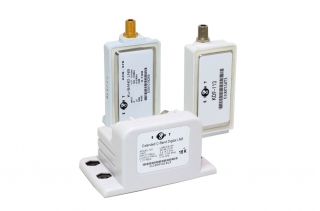

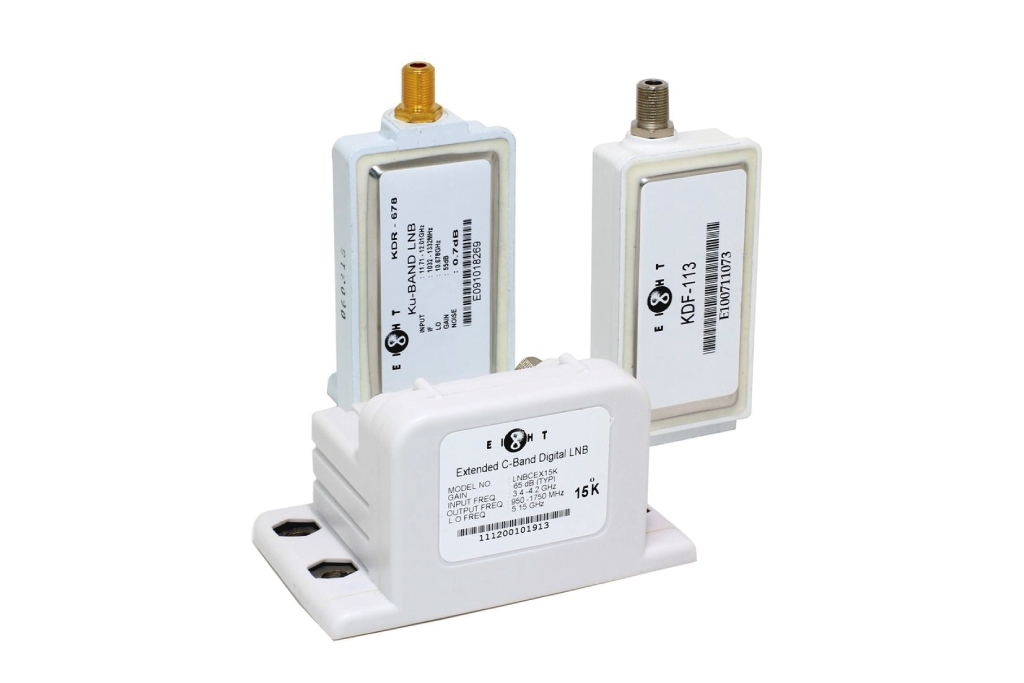

KDF-113
Ku Band LNB
Price: HK$0
download-icon Download Specification
Features
  • Ultra light
  • Compact size
  • Extended C band range
Specification


General

Band Ku band LNB
Input Frequency 12.25 ~ 12.75 GHz
Output Frequency 950 ~ 1450 MHz
L.O & Stability (Over Temperature) 11.3 GHz ± 2 MHz
Noise Temperature (@+25 degree C) 0.6 ~ 0.9 dB (max)
Input VSWR 2.5:1 (typ)
Image Rejection 40 dBc (min)
Conversion Gain 55 dB (typ)
1 dB Gain Compression Point 0 dBm (min)
Output VSWR 2:1 (typ)
Gain Flatness 6 dBp-p (max)
Gain Ripple (@ per channel) ± 0.75 dB (max)
Output Impedance 75 Ω
Leakage (@ Input port) -60 dBm (max)
Phase Noise -80 dBc/Hz (@10KHz)
  -95 dBc/Hz (@100KHz)
  -110 dBc/Hz (@1MHz)
Power Supply 12 ~ 24V DC
Requires Current 150mA (max)
Operating Temperature  -30°C  ~ 60°C
Storage Temperature  -40°C  ~ 80°C
Relative Humidity 0% ~ 95% RH
Input Waveguide Flange WR-75
IF Output Connector F-Type Female
