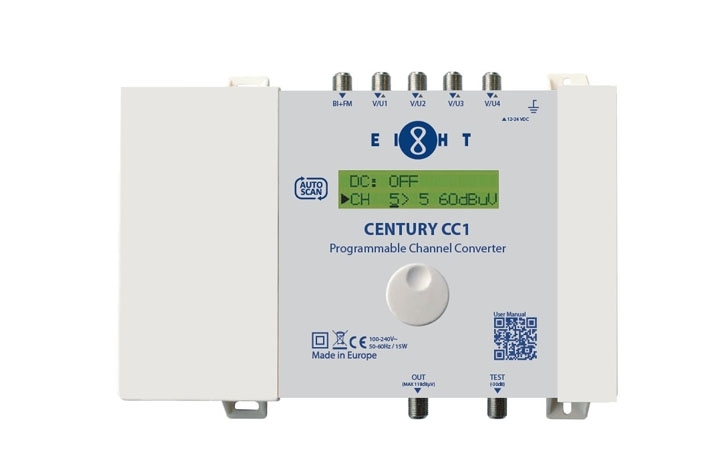

Features
- Automatic CHANNEL SCAN
- Able to process >50 channels (32 filters)
- Able to handle VHF & UHF signals simultaneously
- 5G LTE Protection (694MHz)
- Filter sharpness >50dB adjacent channels
- Real-time AGC on all individual filters
- Settings can be protected by security code
- 5 inputs: BI+FM/4xVHF-UHF including DAB Subchannels
- Made in Europe
Specification
General
| Inputs | 4 VHF/UHF + 1 BI+FM |
| Outputs | 1 main (BI+FM-VHF-UHF) + 1 test port (-30dB) |
| Connector (Input & Output) / Impedance | F-Type / 75Ω |
| Frequency range | BI+FM: 88 - 108 MHz , VHF:174 - 240 MHz, UHF: 470 - 862 MHz |
| LTE protection | Automatic selection: 694 MHz or OFF |
| Input level | BI+FM: 37 - 77 dBµV, VHF: 37* - 109 dBµV, UHF: 37* - 109 dBµV |
| BIFM output power (60dB/IM3) | 113 dBµV |
| VHF/UHF output power (60dB/IM3) | 120 dBµV |
| VHF/UHF output power (35dB/IM3) | 131 dBµV |
| VHF/UHF output power with 1 MUX | 118 dBµV |
| VHF/UHF output power with 6 MUX | 114 dBµV |
| VHF/UHF output power with 15 MUX | 109 dBµV |
| VHF/UHF output power with 32 MUX | 106 dBµV |
| Conversion | Yes (from any VHF-UHF channel to any VHF-S-UHF channel) |
| Gain | BI+FM: 35 dB, VHF: > 75 dB, UHF: > 75 dB |
| Gain adjustment | BI+FM: 20 dB, VHF/UHF: Channel AGC (dB) |
| Noise figure | FM, VHF-UHF: 7 dB |
| General attenuator | 20 dB |
| VHF/DAB attenuator | 15 dB |
| Slope adjustment | 15 dB |
| Selectivity | 50 dB/1MHz |
| Output MER | VHF: 35 dB , UHF: 35 dB |
| ESD protection | All inputs |
| Remote voltage for preamp | 12 or 24 V |
| Remote current | 100 mA (total for the 4 inputs) |
| Operating temperature | -5 °C to +50 °C |
| Power supply | 100 - 240 V |
| Power consumption | 15 W |
| Dimensions | 217 x 165 x 59 mm |
| Weight | 0.8 kg |
*For 64QAM with code rate 3/4
