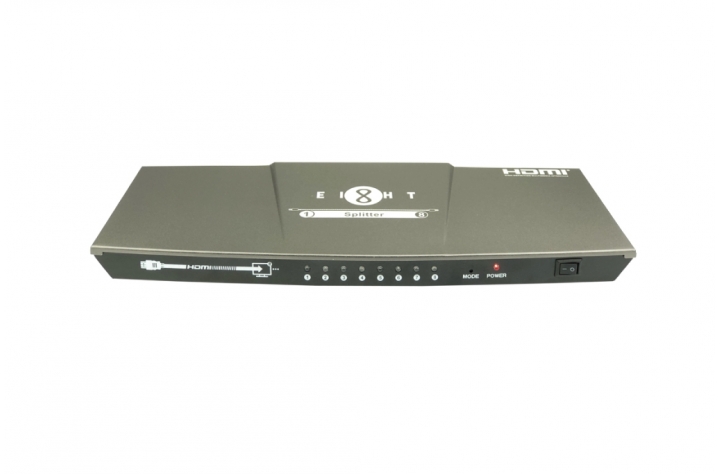

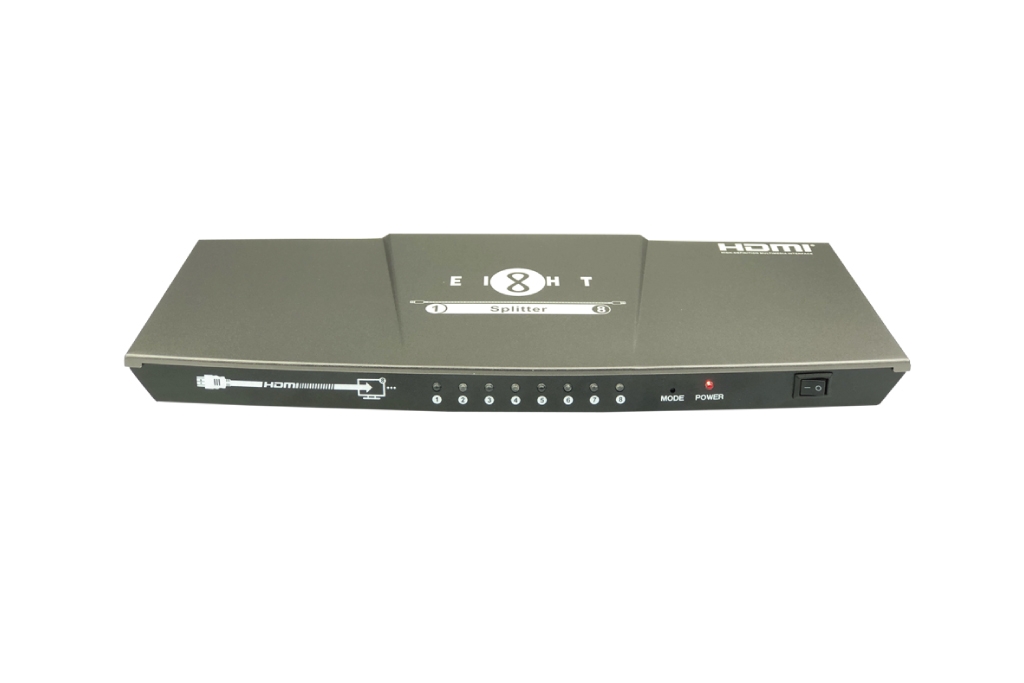

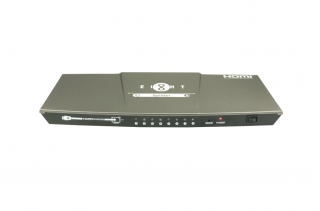

HSP1.4_1X8_A
HDMI Splitter
Price: HK$0
download-icon Download Specification
Features
  • Supports up to 36 bit/pixel colour depth
  • Supports LPCM 7.1, Dolby® TrueHD, Dolby Digital® Plus, and DTS-HD® Maste Audio™
  • Supports EDID mode adjust, compatible with most of the HDMI sources and displays
Specification


General

Smart EDID Yes
Resolution Up to 3840x2160@30Hz
HDMI Version 1.4
HDCP Version 1.3
Data Rate 10.2 Gbps
Input 1x HDMI Type A, 24/26 AWG cable up to 5M (1080P60Hz)
Output 8x HDMI Type A, 24/26 AWG cable up to 15M (1080P60Hz)
ESD Protection Human body model - ±8KV (Air-gap discharge)


General

Chasing Material Aluminium Alloy
Dimensions 300 (L) x 117 (W) x 28 (H) mm
Weight 800g
Power Supply DC 5V
Operating Temperature 0 to 70°C
Storage Temperature -40 to 85°C
Operating Humidity 10% to 90% RH
