Features

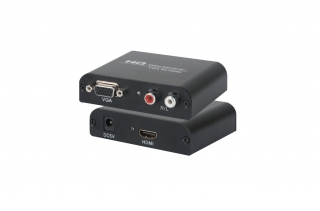

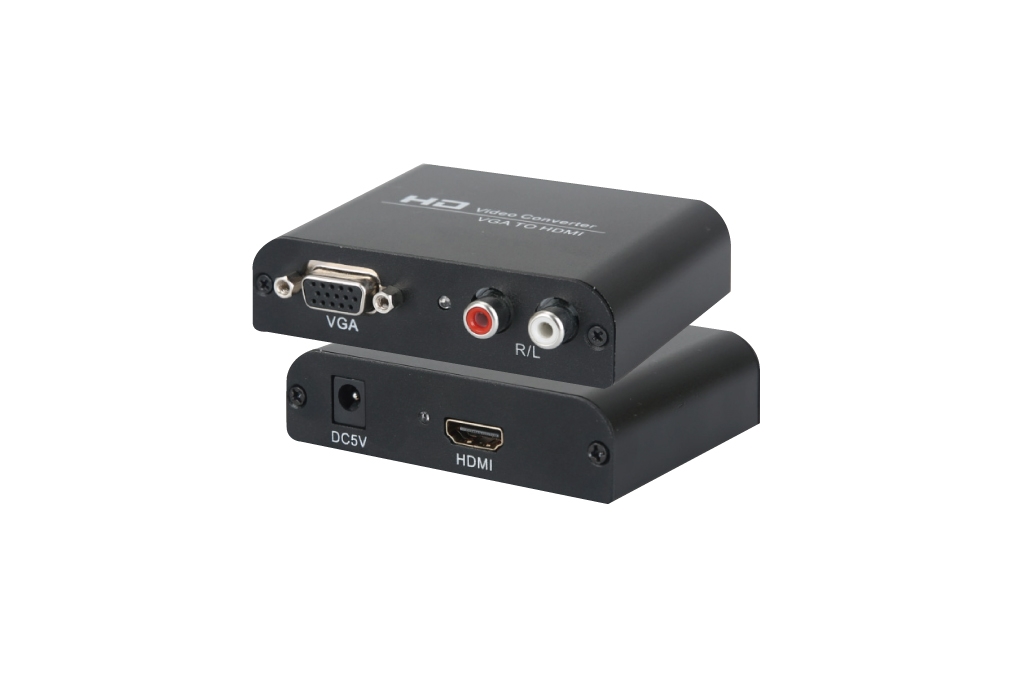

- VGA+R/L audio input signal convert to HDMI signal
- Supports video input: VGA analog
- Supports audio input: Stereo analog
- HDMI input output :Supports up to 1920 x 1080P
Specification
General
| HDMI Output Video Signal | 0.35~0.7 volts P-P |
| VGA Input Video Signal | 0.5~2.0 volts P-P |
| Suport VGA Input Video |
24-bit 4:4 YCbCr or RGB 16-bit 4:2:2 YCbCr 480i, 576i, 720p, 1080i, 1080p |
| Max Refesh Rate | 24 bit VGA, SVGA, XGA and SXGA 75Hz |
| HDMI Output | 1080p (Max) |
| Operating Temperature | -5 to +35°C |
| Operating Humidity | -5% to 90% RH |
