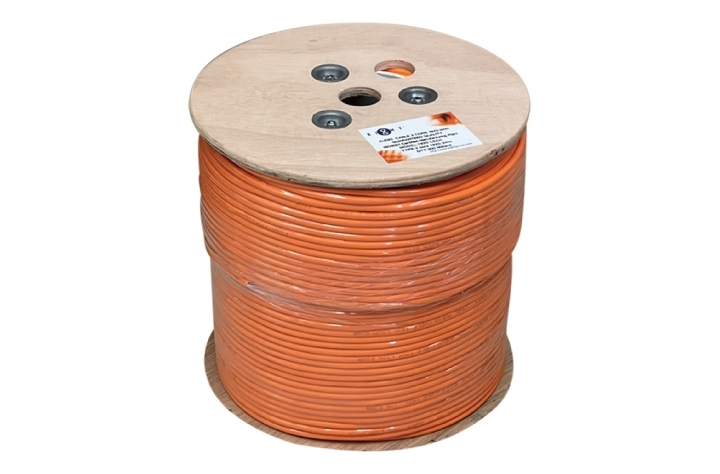

1920 LSZH
Speaker Cable
Length:
Price: HK$0
download-icon Download Specification
Features
  • Intercom / PA systems
  • Sound / Audio systems
Specification


General

Conductor Material  TC
  Cores 2
  Max Resistance(20°C) 31Ω/km
  Construction(No./mm) 19/0.21mm
Insulation Insulation  PE
  Insulation Dielectric 2.0mm±0.1mm
  Insulation Color White &Transparent
Shield AL Foil /
  Drain wire(No./mm) /
Jacket Jacket Material LSZH
  Jacket Color Orange
  Jacket Thickness 0.9mm±0.05mm
  Jacket O.D 5.8 mm±0.2mm
Operation Temperature Operation Temperature  -20°C To +60°C
Suitable for  Suitable for   Indoor



Construction





Self Photos / Files - 1920Construction





Download Documents
