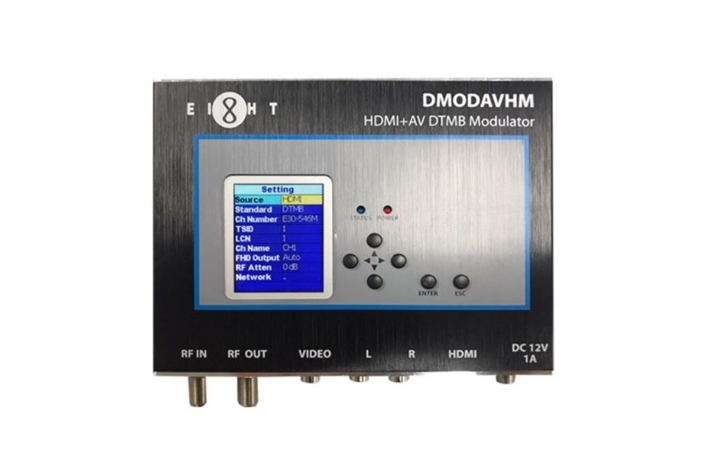

DMODAVHM
HDMI+AV DTMB Modulator
Price: HK$0
download-icon Download Specification
Features
  • Supports output resolutions up to 1080p
  • Easy to use color LCD panel and 6 key buttons
  • Easy to set up via Web NMS
  • Small size and Light weight
  • Support wall-mount type
  • Good ventilation for the device
  • Install multiple units onto your TV system
Specification

Modulator

Standard DTMB( GB20600-2006 )
MER Typ.35dB
RF range 100-950MHz, 1KHz step
RF output level 100dBuV(30dB Attenuation)


Encoding Video

Encoding MPEG2
Interface HDMI x 1, AV x 1
Resolution Max.1080@30p
Bit rate VBR ( Max.20 Mbps )


Encoding Audio

Encoding MPEG-1 Layer ll
Sample rate 48KHz


General

Basic Source / Channel No. / TS ID / LCN / Channel Name / RF Attenuation / FHD output / Network
Management LCD+Control buttons /Ethernet
Language English
Upgrade Ethernet
Power supply DC 12V 1A
Dimensions 150x115x32 mm
Weight  400g
