下載技術規格

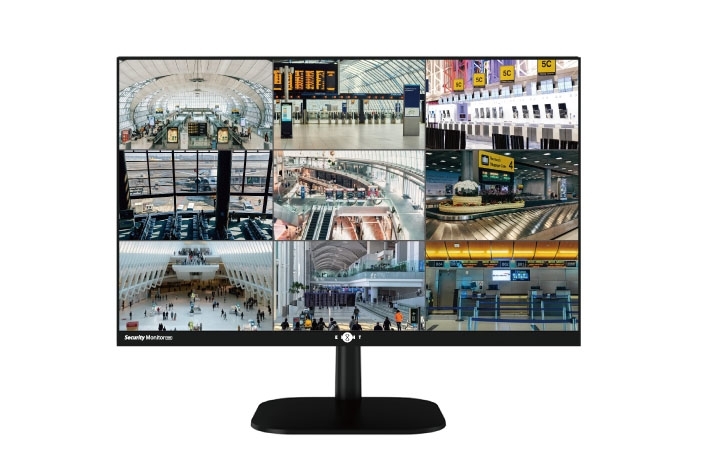

產品資訊
- 用於視頻監控和安全應用
- HDMI、VGA、BNC 和音頻輸入
- 支持 3D comb filter and 3D de-interlace
- 檢測到視頻源時，自動開啟
- LED面板具有超寬視角
- CE認證
- HDMI 認證
技術規格
General
| Panel | Screen Size | 23.8" |
| Brightness | 300 cd/m2 | |
| NTSC Ratio | 72% | |
| Contrast (Typical) | 1000:1 (Typical) | |
| Active Area (mm) | 527.04(H) x 296.46(V) mm | |
| Pixel Pitch (mm) | 0.2745 (H) x 0.2745(V) mm | |
| Resolution (H x V) | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| View Angles | H 178°/ V 178° | |
| Response time | 5ms | |
| Display Colors | 16.7M colors | |
| PC Input Range | Vertical Frequency | 60Hz |
| Display Frequency (Max) | 1920 x 1080 /75Hz | |
| Output | Output | BNC out |
| Speaker (Max) | 3Wx4Ω | |
| Interface | VGA | 1 |
| HDMI | 1 | |
| BNC input | 1 | |
| Audio input | 1 | |
| Consumption (Max) | On: ≤30W | |
| Standby≤0.5W, Typ. 18W | ||
| Power | 100-240V~ 50/60HZ | |
| Power Mode Indicator Light | Power on : BLUE (LED) | |
| Power saving : RED (LED) | ||
| Temperature | 0°C~55°C | |
| Humidity | 20% ~ 85%, non-condensing | |
| Weight | 4.25 KG | |
| Dimension | 542 x 44.7 x 401.5mm | |
| VESA | 100 x 100 mm |
