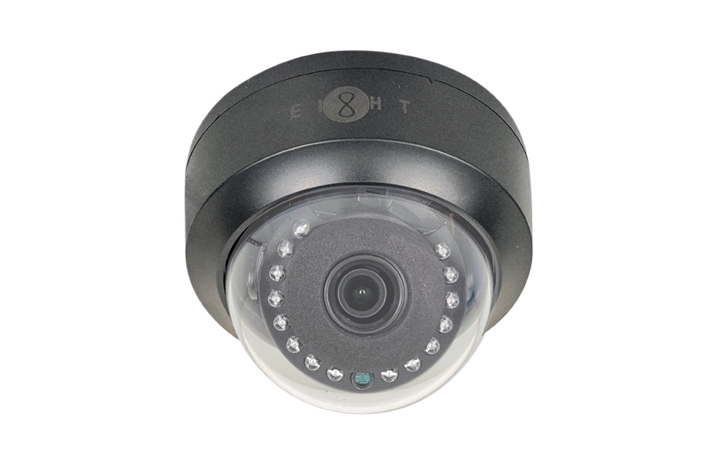

EAD-222R
2 Megapixel full HD with IR AHD Dome Camera
價錢: HK$0
download-icon 下載技術規格
產品資訊
  • Indoor Dome Camera
  • 2.0MP
  • Fixed Lens 3.6mm @F1.2
  • 1/2.9” CMOS
  • IR LEDs
  • 3-axis adjustment
    In-line control unit
技術規格

Video

Signal System PAL / NTSC
Imaging Sensor 2MP CMOS Imaging Sensor
Pixels 1920 x 1080
Resolution 1080p
Lens Type 3.6mm@F1.2
Minimum Illumination Color 0.01 LuxB/W 0 Lux (IR LED ON)
Day & Night Yes
Sync. System Internal
S/N Ratio / DWDR Digital >50dB
Video Output Signal 1Vp-p, 75Ω


Operational

IR LED Yes
IR Distance 15M
Backlight Compensation BLC / HSBLC / OFF
DNR 2D + 3D - DNR
Electronic Shutter Speed Auto, 1/50 - 1/500000s
White Balance AWB, ATW, Indoor, Outdoor, Manual
Motion Detection Yes
Digital Effect Off / V-Flip / Mirror / Rotate
Multi OSD Language ENG, CHN, GER, FRA, ITA, SPA, POL, RUS, POR, NED, TUR
Communication Coaxial Communcation


General

Power Source DC12V
Power Consumption 2.0W
Operating Temperature / Humidity -10˚C ~ 50˚C / < 90%
Storage Temperature /  Humidity  -40˚C ~ +60˚C / 0 ~ 95%
Dimension  Ø89mm
