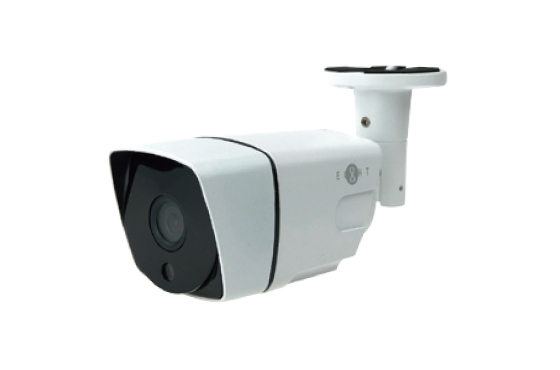

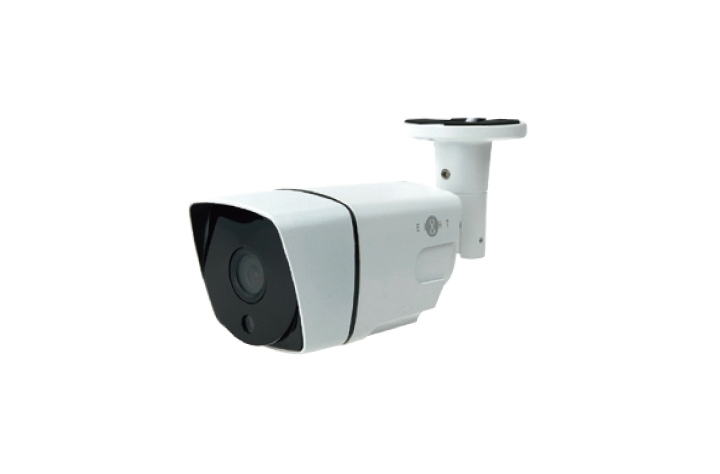

- Outdoor bullet camera
- 2.0MP
- Fixed lens 3.6mm @F1.2
- 1/2.9” CMOS
- 36 IR LEDs, 20M
- Aluminum housing
技術規格
Video
Signal System | PAL |
Imaging Sensor | 1/2.9” CMOS |
Pixels | 1920 x 1080 |
Resolution | 1080P |
Lens Type | 3.6mm@F1.2 |
Minimum Illumination | Color 0.01 Lux B/W 0 Lux (IR LED ON) |
Day & Night | Yes |
Sync. System | Internal |
S/N Ratio / DWDR | Digital |
Video Output Signal | AHD / TVI / CVI / CVBS |
IR LED | 36 EA |
IR Distance | Approx. 20M |
Operational
Backlight Compensation | BLC |
DNR | 2D + 3D - DNR |
Electronic Shutter Speed | Yes |
White Balance | Auto |
Privacy Zone Masking | Yes |
Motion Detection | Yes |
Digital Effect | Off / V-Flip / Mirror / Rotate |
Multi OSD Language | ENG & CHN |
Communication | Coaxial Communcation |
General
Power Source | DC12V |
Power Consumption | 2.0W |
Operating Temperature / Humidity | -10˚C ~ 50˚C / < 90% |
Storage Temperature / Humidity | -40˚C ~ +60˚C / 20 ~ 95% |
Dimension | 52 x Ø113.5mm |
