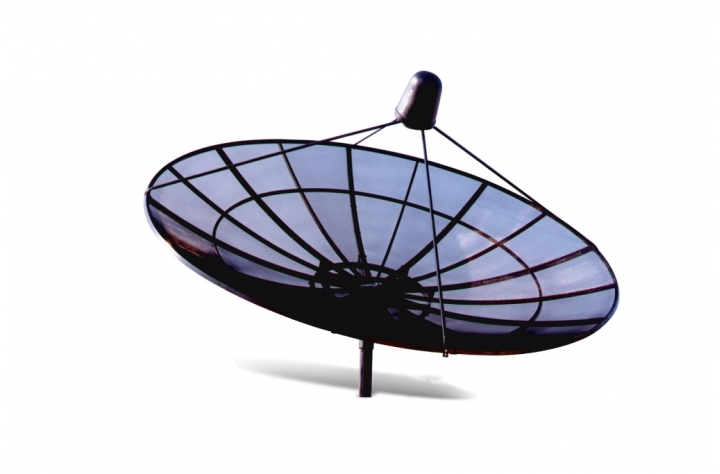

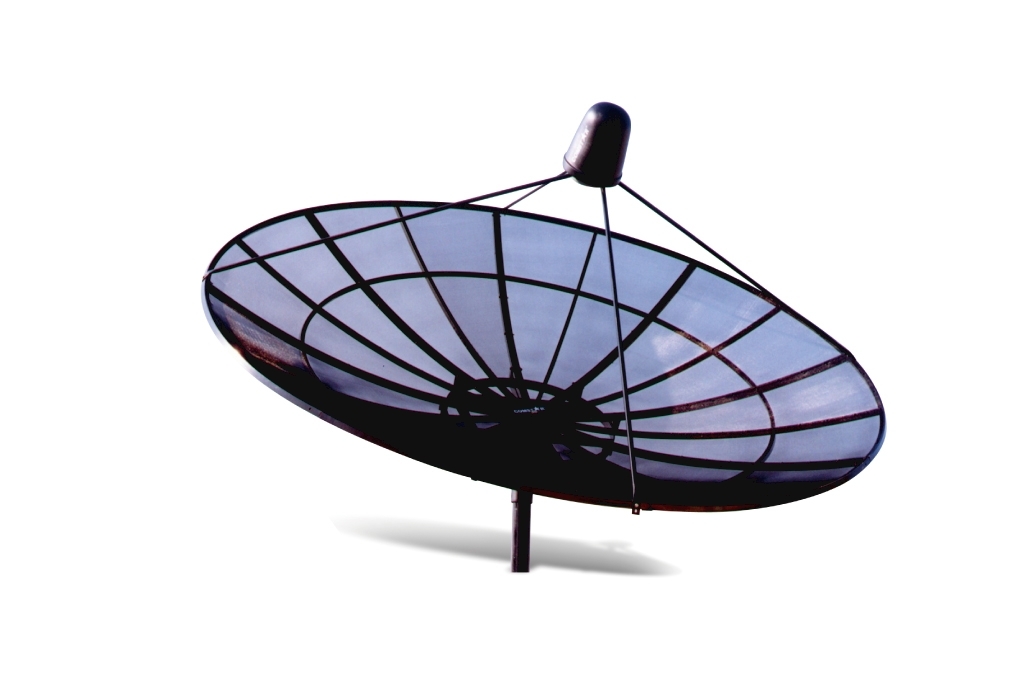

ST-10
網狀天線牒
價錢: HK$0
download-icon 下載技術規格
產品資訊
  • Pro-form aluminum reflector
  • C/Ku mesh
  • Powder-coat finish
  • Wind-resistant structure
  • 8 Point Pro-from 32” mount
  • 4 Point Pro-form 24” mount
  • Quad feed support
  • Ideal for TVRO / SMATV application
技術規格


General

Type     8 Section
Operation Frequency 1 ~ 13 GHz
Diameter     3.0 m (10 ft)
Reflective Material Aluminum
Mesh Thickness 0.8 ± 0.14 mm
Mounting     Polar mount
F/ D Ratio     0.385
Pole Size (O.D) 114 mm (4.5”)
Focal Length 1155 mm (45 7/8”)
Gain at 4.2 (GHz) 39.39 dBi
Gain at 12.2 (GHz) 48.69 dBi
Frist Side Lobe ≤-14
Feed     Prime focus
      Quad feed
      Support
EL Travel Range 5° ~ 90°
AZ Travel Range 0° ~ 360°
Withstand Wind  (Operation)  8 degree wind 72 km / h
                         (Able to receive) 10 degree wind 100.8 km / h
                          (Survival upright) 12 degree wind 133.2 km / h
Net Weight 60 kg
