產品資訊

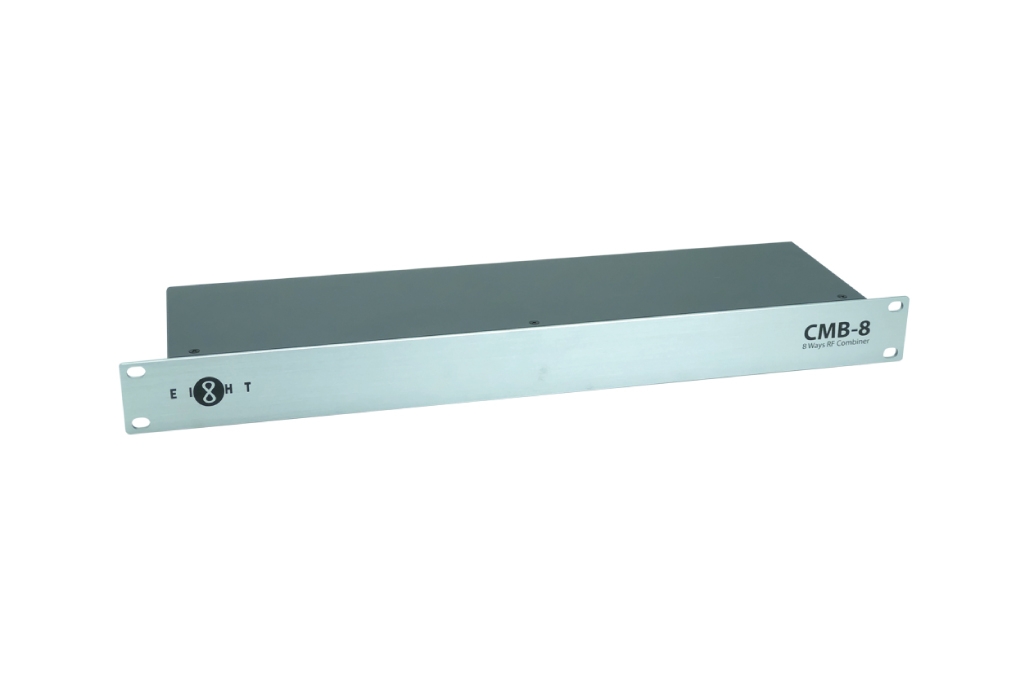

- 8 in 1 Out RF Combiner
- 1U Rack mount
- Low insertion loss, high return loss and isolation
- High quality, Durable, Reliable and Flexible
技術規格
General
Insertion Loss OUT-IN | 5-240MHz | 10.5 dB(Max) | |
240-470MHz | 11.0 dB(Max) | ||
470-750MHz | 11.5 dB(Max) | ||
750-1000MHz | 12.5 dB(Max) | ||
Isolation Loss IN-IN | 5-240MHz | 28 dB(Min) | |
240-470MHz | 30 dB(Min) | ||
470-750MHz | 28 dB(Min) | ||
750-1000MHz | 25 dB(Min) | ||
Return Loss IN/OUT | 5-240MHz | 16 dB(Min) | |
240-470MHz | 16 dB(Min) | ||
470-750MHz | 16 dB(Min) | ||
750-1000MHz | 16 dB(Min) | ||
General Information | Interface / Impedance | F, 75Ω | |
Dimensions | W x D x H | 485 x 140 x 45mm |
