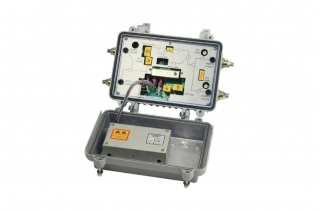

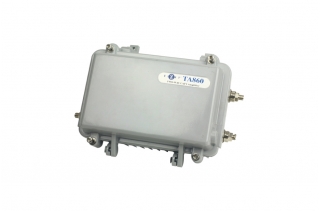

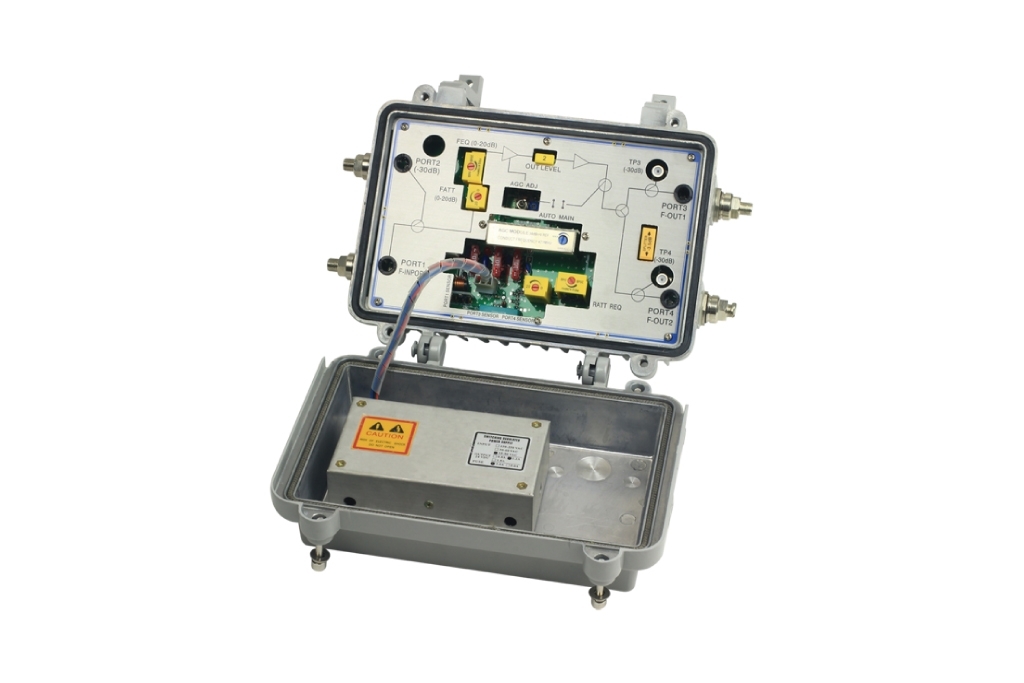

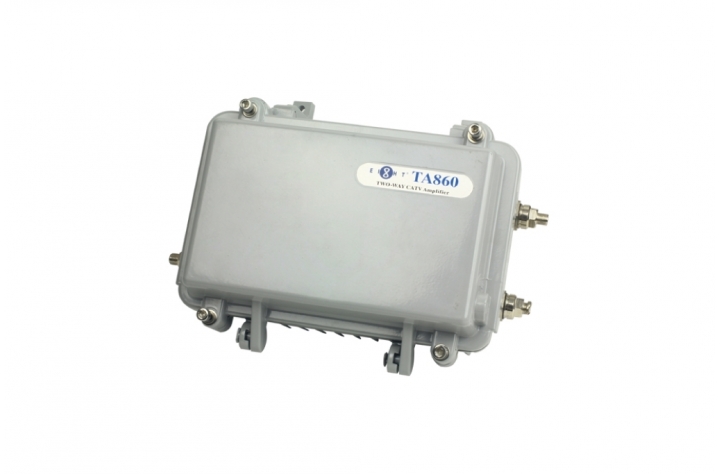

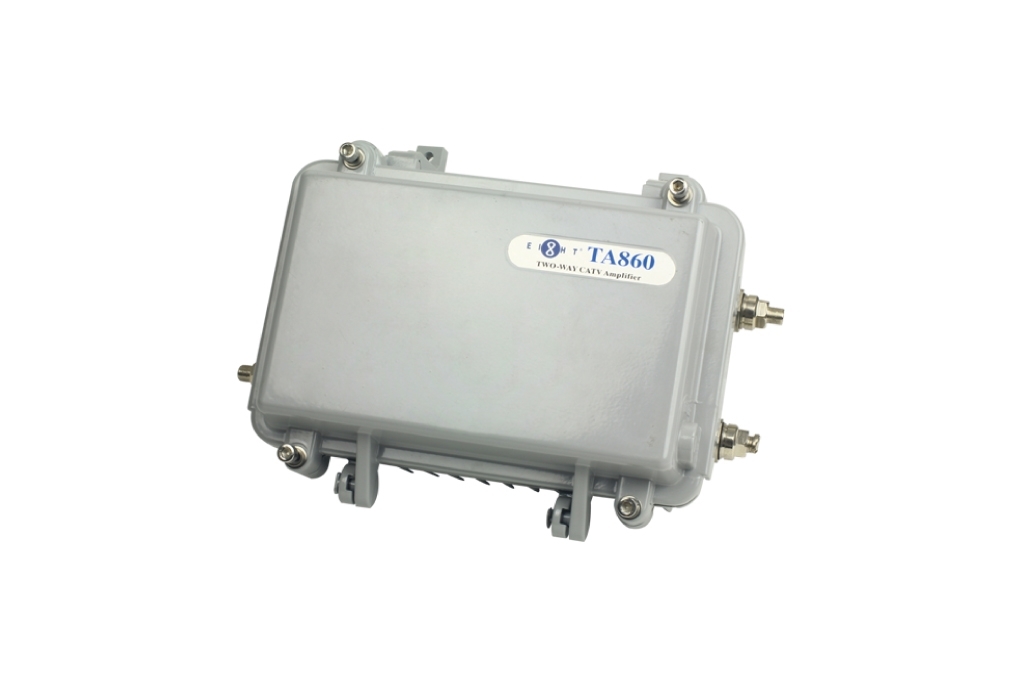

TA860
Trunk Amplifier
價錢: HK$0
download-icon 下載技術規格
產品資訊
  • Economical choice for two-way CATV system
  • Switch power supply
  • GaAs power double amplifier technology
  • Water-resistant and outdoor housing suit for all occasion
技術規格

General

Frequency range Forward path (option) 54 ~ 860 MHz
  Returm path (option) 5 ~ 42 MHz
Gain Forward  path (option)  30 dB
  Returm path  (option) 22 dB
Noise Figure Forward  path  ≤ 10 dB
  Returm path  ≤ 8 dB
Output Level Forward  path  102 dBμV
Pilot Frequency 471 MHz
AGC Range ± 4dB ± 0.3dB
Distortion CTB

Forward

(input 59 PAL channels & 200 MHz digital signal)

≤ -65 dB
Distortion CSO

Forward

(input 59 PAL channels & 200 MHz digital signal)

≤ -63 dB

Return Loss

(Impedance 75Ω)

Forward  path  ≥ 15 dB
  Returm path  ≥ 15 dB
Flatness Forward  path  ± 0.75 dB
  Returm path  ± 0.75 dB
Power Supply 60Vac version 30V~70V/1~0.5A
  220Vac version 150V~265V/0.3~0.2A
Operating Temperature -20°C ~ 50°C
Weight   2.5 kg
Dimensions (L x W x H) 280 x 220 x 110 mm
