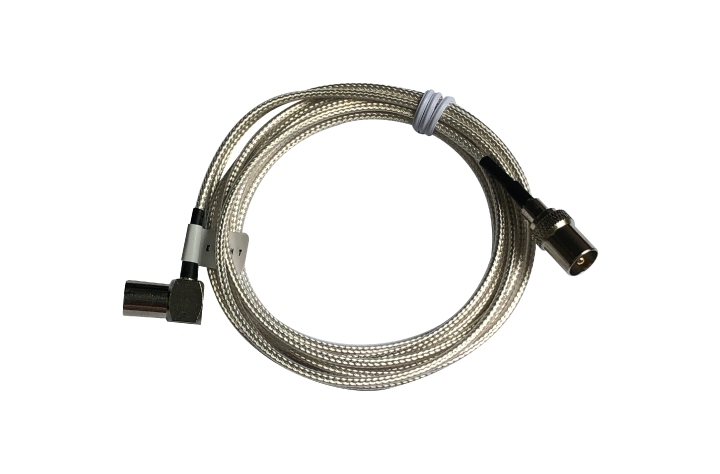

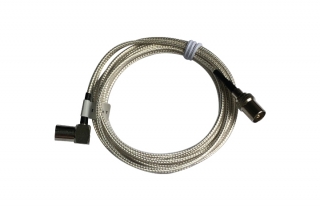

產品資訊
- 低哀減
- 30 AWG
- 阻抗：75Ω
- 連接器：90 DEG IEC Male to IEC Male
- 長度： 6ft / 9ft / 12ft / 15ft
技術規格
General
| Conductor | 30 AWG | |
| Conductor Structure | 7 x 38 AWG | |
| Insulation Diameter | 1.55 mm | |
| Shielding | Braid Coverage 95% | |
| Outer Jacket Diameter | 2.54 mm | |
| Impedance | 75 Ω | |
| Connector | IEC Male / IEC Male | |
| Length | 6ft / 9ft / 12ft / 15ft |
Attenuation
| Frequency (MHz) | 150 | 600 | 1000 | 1500 | 2000 | 3000 | |
| Typical (dB/m) | 0.3 | 0.631 | 0.856 | 1.05 | 1.25 | 1.65 |
