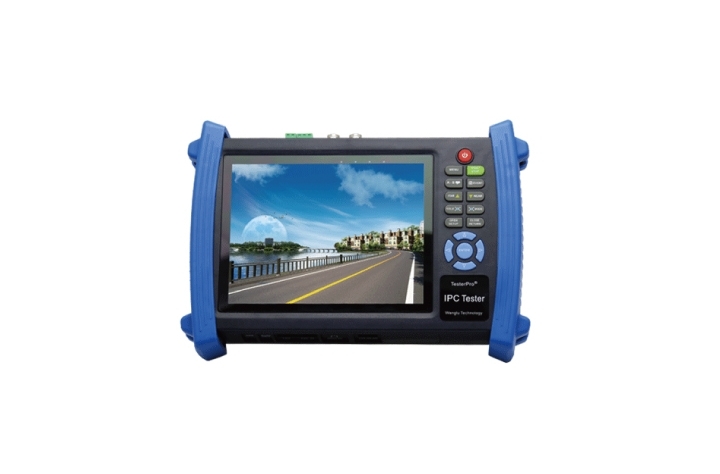

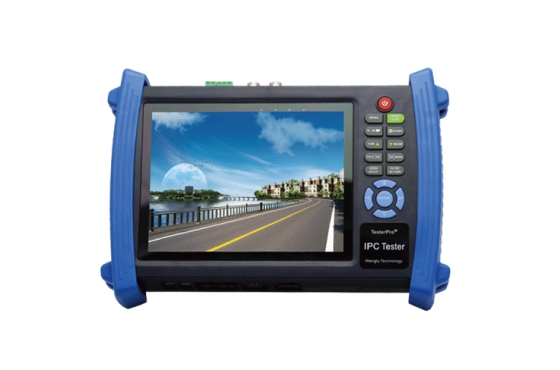

IPC-8600F
CCTV Multi-Tester
Price: HK$0
download-icon Download Specification
Features
  • 7 inch touch screen, OSD menu
  • Built-in WIFI, wireless network camera test
  • Support 1080p HD camera
  • Support ONVIF camera
  • PoE DC48V power output, Max 24W
  • HDMI output, 1920 x 1080 resolution
  • Lithium ion polymer battery
  • Auto off : 1-30 (mins)
Specification


General

Display  7 inch capacitive touch screen, resolution 1024 x 600
Network port  10/100M auto adjust, RJ45
WIFI Built in WIFI,speeds150M, allows you to connect to a wireless network and view IP cameras
IP Camera Type ONVIF,ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, RTSP Viewer
Analog Video Test  1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapt)
Video Level Meter PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement for cvbs camera
Zoom Image  Supports Analog and IP camera image zooming & movement
Snapshot, Video record and playback Capture current images and record live video as JPG file, Media player will view photos and playback video
HDMI output  1 channel HDMI output, supports up to 1080p
Power output  Output DC12V/2A power to camera / USB: 5V 2A power output only ,NO data / PoE: 48V Max power 24W
Audio test 1 channel audio signal input and 1 channel audio signal output to connect headphones
PTZ control Support RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc
Color bar generator Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )
UTP Cable tester Test UTP cable connection status and display on the screen. Read the number on the screen
Data monitor Captures and analyzes the command data from controlling device, also can send hexadecimal
Network test  IP address scan, link scan, and Ping test. Quickly search the for IP camera’s IP address on your network
Cable tracer Find a connected cable from a bundle of cables using audio tones
PoE /PSE voltage test  Measures PoE switch voltage and displays pin configuration
Battery / Rechargeable  Built-in 7.4V Lithium polymer battery ,6500mAh / After charging 7~8 hours, normal working time 15 hours
Operation setting Capacitive touch screen, OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian or Polish, etc
Working Temperature -10˚C±50˚C
Working Humidity  30%-90%
Dimension / Weight  231mm x 172mm x 52mm  1.26Kg


Functions

SDI video signal test 1 channel SDI input (BNC interface) , resolution support : 720p 60fps / 1080p 30fps /1080i 60fps
CVI video signal test  1 channel CVI input (BNC interface) , resolution support 720p 25,30,50,60fps/ 1080p 25,30fps
TVI video signal test 1 channel TVI input (BNC interface) ,resolution support 720p 25,30,50,60fps/ 1080p 25,30fps
AHD video signal test 1 channel AHD input (BNC interface) ,resolution support 720p 25,30fps / 1080p 25,30fps
Digital Multi-meter AC/DC Voltage, AC/DC current, Resistance, Capacitance, Data hold, Relative measurement,Continuity testing, Testing speed: 3 times/ seconds, Data range -6600 ~+6600
Optical power meter Calibrated Wavelength(nm) :850/1300/1310/1490/1550/1625nm, Power range(dBm) :-70 ~+10dBm
Visual fault locator Test fiber's bending and breakage ( SM and MM fiber)
TDR cable test Cable's open circuit (Breakpoint) and short circuit measurement (BNC cable, telephone cable)
