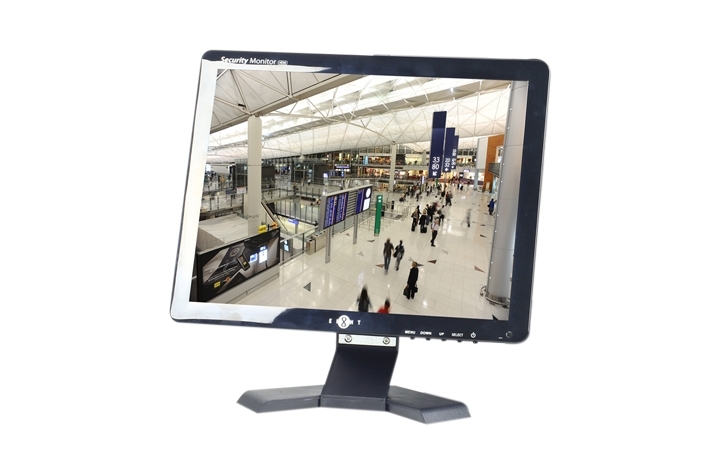

SM15AH
4:3 LED Security Monitor
Price: HK$0
download-icon Download Specification
Features
  • 5ms response time
  • HDMI, BNC, VGA inputs, BNC output
  • Comb filter
  • Audio in, Audio out
  • Built-in speakers
  • Noise reduction
  • Built-in power supply
Specification

Panel

Inch   15”
Resolution   1024 x 768 @ 60Hz
Brightness   300 cd/m²
Contrast   800:1
Viewing Angle Degree   160°(H) / 145°(V)
Pixel Pitch (mm)   0.099 (H) x 0.297 (V)



Scan System   Interlace
Comb Filter   Yes
Screen Mode   4:3


Input

Composite   1 (BNC)
VGA   1
HDMI   1
Audio   ---


Output


Composite   1 (BNC)
Audio   ---


General

Power Supply   DC 12V / 3A
 /3APower Consumption   Less than 20W
Dimension A 348 mm
  B 328 mm
  C 273mm
  D 120 mm
  E 69 mm
Weight   2 Kg
VESA   75 x 75 mm


Dimension (Unit)

Self Photos / Files - Monitor Dimension
