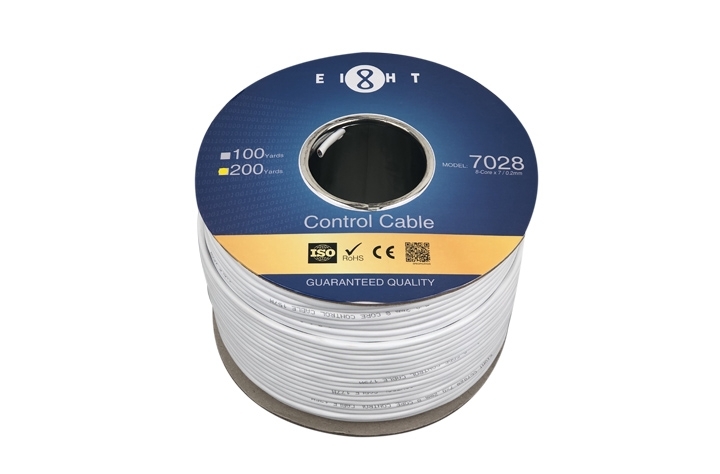

7028
Control Cable
Length:
Price: HK$0
download-icon Download Specification
Features
  • Power limited controls
  • Single line telephone
  • Security systems
  • LSZH Jacket option available
Specification


General

Conductor Material  TC
  Cores 8
  Max Resistance(20°C) 80Ω/km
  Construction(No./mm) 7/0.2mm
Insulation Insulation  PVC
  Insulation Dielectric 1.1mm±0.1mm
  Insulation Color White & Black &Orange &Red&Blue&Green&Yellow&Brown
Shield AL Foil /
  Drain wire(No./mm) /
Jacket Jacket Material PVC
  Jacket Color White
  Jacket Thickness 0.65mm±0.05mm
  Jacket O.D 5.1mm±0.2mm
Operation Temperature    -20°C To +60°C
Suitable for   Indoor

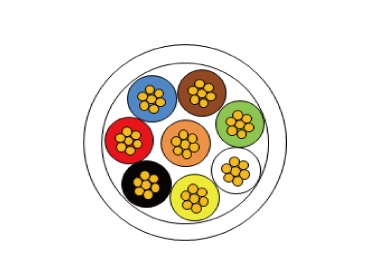

Construction

Self Photos / Files - 7028Construction
