CS660BV

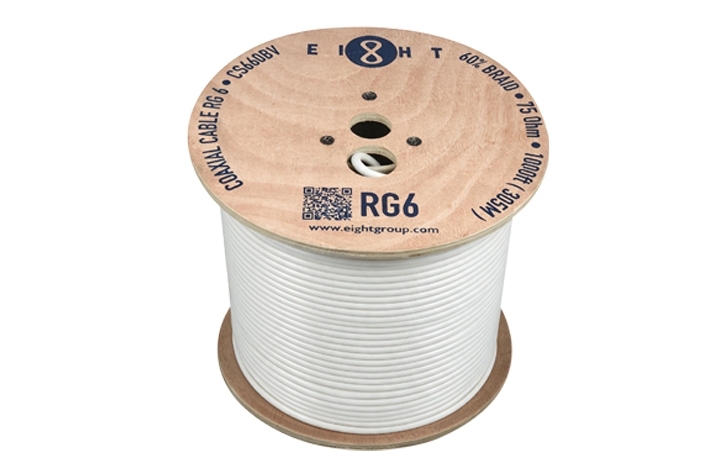

RG6 Coaxial Cable
Price: HK$0
download-icon Download Specification
Features
  • Dual bonding
  • Application temperature - 20˚C ~ +60˚C
  • Messenger wire with different breaking strength options
  • UL grade available, contact us for details
  • LSZH option available for these IEC standards: IEC61034-2:2005, IEC60754-1:2011, IEC60332-1-2:2004
  • ISO9001 Certified Manufacturing Plant
  • Other options are available, please ask our sales representative for detail
Specification


Construction

Inner Conductor Copper Clad Steel 20% conductivity
Braid Coverage, Aluminum Wire 60%
Center Conductor Diameter 1.02 ± 0.01 mm
Bonded Foam PE Dielectric 4.57 ± 0.10mm
Sealed Tape  4.75 ± 0.10 (AP)mm
Aluminum Braiding 5.26 ± 0.15mm
PVC Jacket 6.80 ± 0.15 mm


Electric Specifications

Nominal DC Resistance Inner Conductor  105 Ω / km
Nominal DC Resistance Outer Conductor  49.5 Ω / km
Nominal DC Resistance Loop  144.5 Ω / km
Nominal Capacitance 53.0 pF /m
Impedance 75 ± 3 Ω
Nominal Velocity of Propagation 85% nominal


Packing

100-Yards Boxes (5 Boxes / Carton) 30 x 30 x 53 cm
Net Weight  22 Kg
Gross Weight  23 Kg
1000-Feet Reel 32 x 15 x 30 cm
Net Weight  12 Kg
Gross Weight  13 Kg

  • Steel messenger wire 1.30 mm models are available with the above spec:  CS640BVM, CS660BVM, CS690BVM
  • Flooding compound models are available with the above spec:  CS640BVMF, CS660BVMF, CS690BVMF
  • LSZH Jacket option available
  • Armour type available


Attenuation

Frequency MHz 5 55 211 250 270 300 330 400 450 500 550 600 750 870 1000 1500 2000 2050 2200
Attenuation Nominal dB/100m 1.90 4.82 9.25 10.11 10.54 11.15 11.75 13.02 13.87 14.67 15.46 16.23 18.41 20.05 21.29 27.10 29.71 30.06 30.24

  • Attenuation increases with increasing temperature and decreases with decreasing temperature at the rate of 0.18% / oC
  • DC resistance changes at the rate of 0.393% / oC
  • All values are nominal figures
