CON_AMP

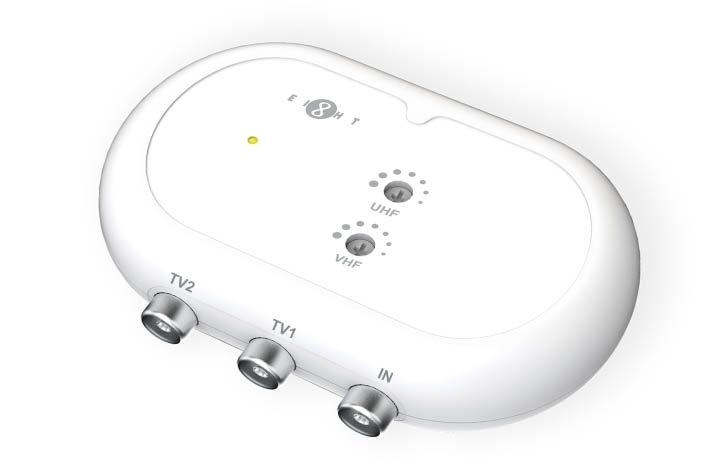

TV Amplifier (Home Use)
Price: HK$0
download-icon Download Specification
Features
  • Output: 2
  • VHF:40MHz~230MHz
  • UHF:470MHz~862MHz
  • Boosts TV / Radio analog and digital signals
  • Separate adjustable gain controls for UHF and VHF
  • DC Power input
  • Accessories included for wall mount
  • Enhances performance of all passive outdoor antennas while challenging reception issues
Specification


General

Band Coverage: VHF: 40~230MHz
  UHF: 470~862MHz
Gain : VHF: 19.5dB
  UHF: 21dB
Regulation: VHF: 18dB
  UHF: 16dB
Noise Figure: VHF: 5.5dB
  UHF: 4.3dB
Number of Output: 2
Max Output Level: 110dBμv
Input / Output Impedance: 75ohm
Power Supply Input Voltage:100~240/Vac
  DC IN: DC 5V/2A
Operating Temperature Range: 0~50˚C
Connectors: IEC
